OPERATION
Typhoon EV 1592/1512 (08--07)
5

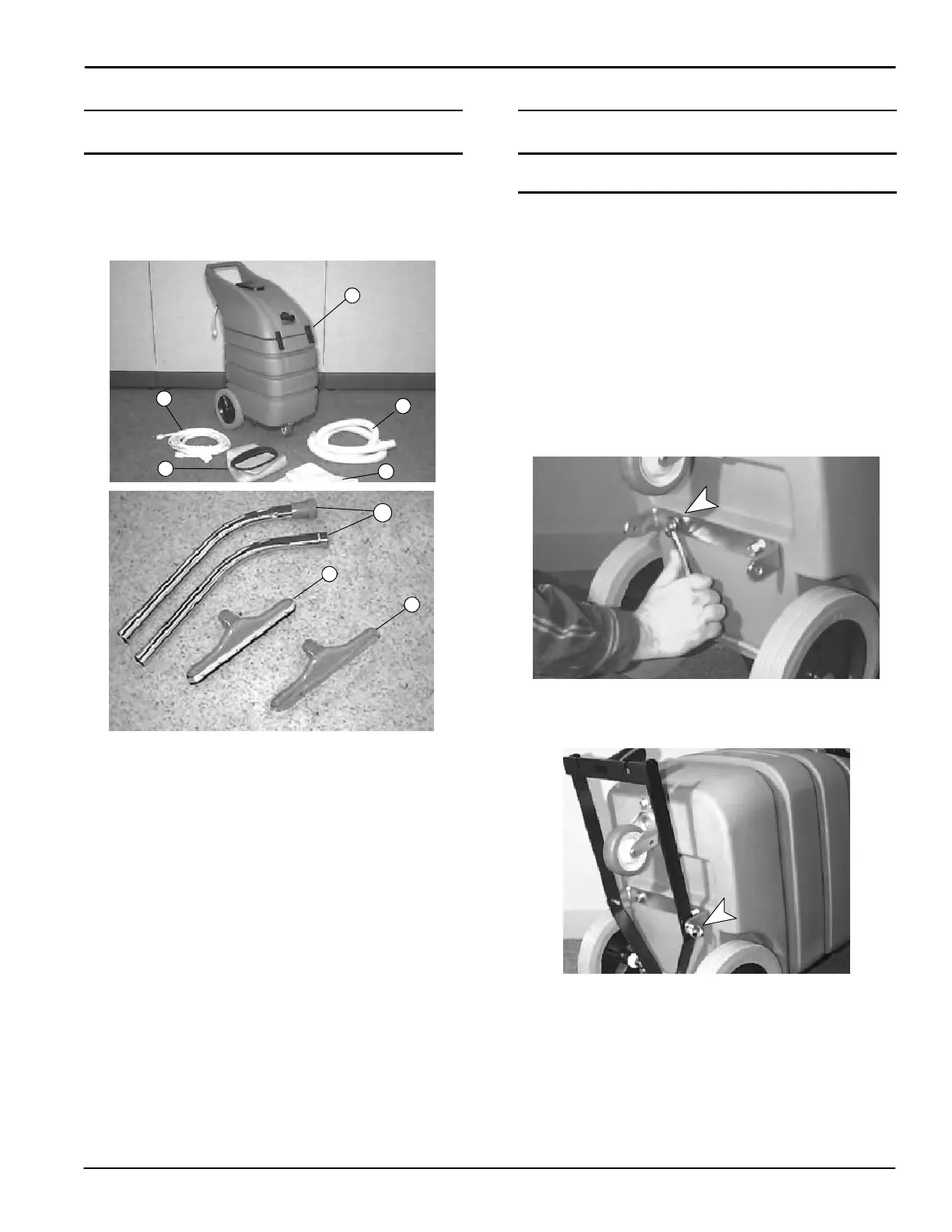

MACHINE COMPONENTS
1. Check carton for signs of damage. Report
damages to carrier immediately.
2. Check carton contents to ensure all accessories
are included. Contact distibutor for missing items.
3
2
1
5
4
7
6
8
1. 1 -- Machine
2. 1 -- 10 ft / 3 m vacuum hose -- used with
accessory tools
3. 1 -- Paper bag
4. 1 -- Cloth bag
5. 1 -- 50 ft / 15 m power cord
6. 1 -- T wo Piece Double Bend Chrome Wand
7. 1 -- 14 in / 355 mm Push/Pull Squeegee Tool
8. 1 -- 16 in / 406 mm Carpet Tool
MACHINE SETUP
SQUEEGEE KIT ATTACHMENT (OPTIONAL)
FOR SAFETY: When servicing machine, unplug
cord from wall outlet. Use manufacturer supplied
or approved replacement parts.
1. Empty recovery tank.
2. Remove vacuum bags.
3. T ip machine on back.
4. Remove (2) bolts and washers located at bottom
of machine.
5. Install squeegee mounting bracket (supplied with
kit). Re--install bolts and washers (Figure 1).
FIG. 1
6. Fasten squeegee to mounting bracket. Use (2)
clevis and cotter pins provided (Figure 2).
FIG. 2
7. Stand vacuum upright.
