Nokia 1100 Service Manual

nokia
CONNECTING PEOPLE
PAGE 11 (18) Approved 2.0
CMO Operations & Logistics
MWy
WW Service Solutions & Development
Confidential 16.06.2005
Bochum / Germany
Service Manual 1100/1101 Level 1&2 Copyright 2003-2005 © Nokia Corporation

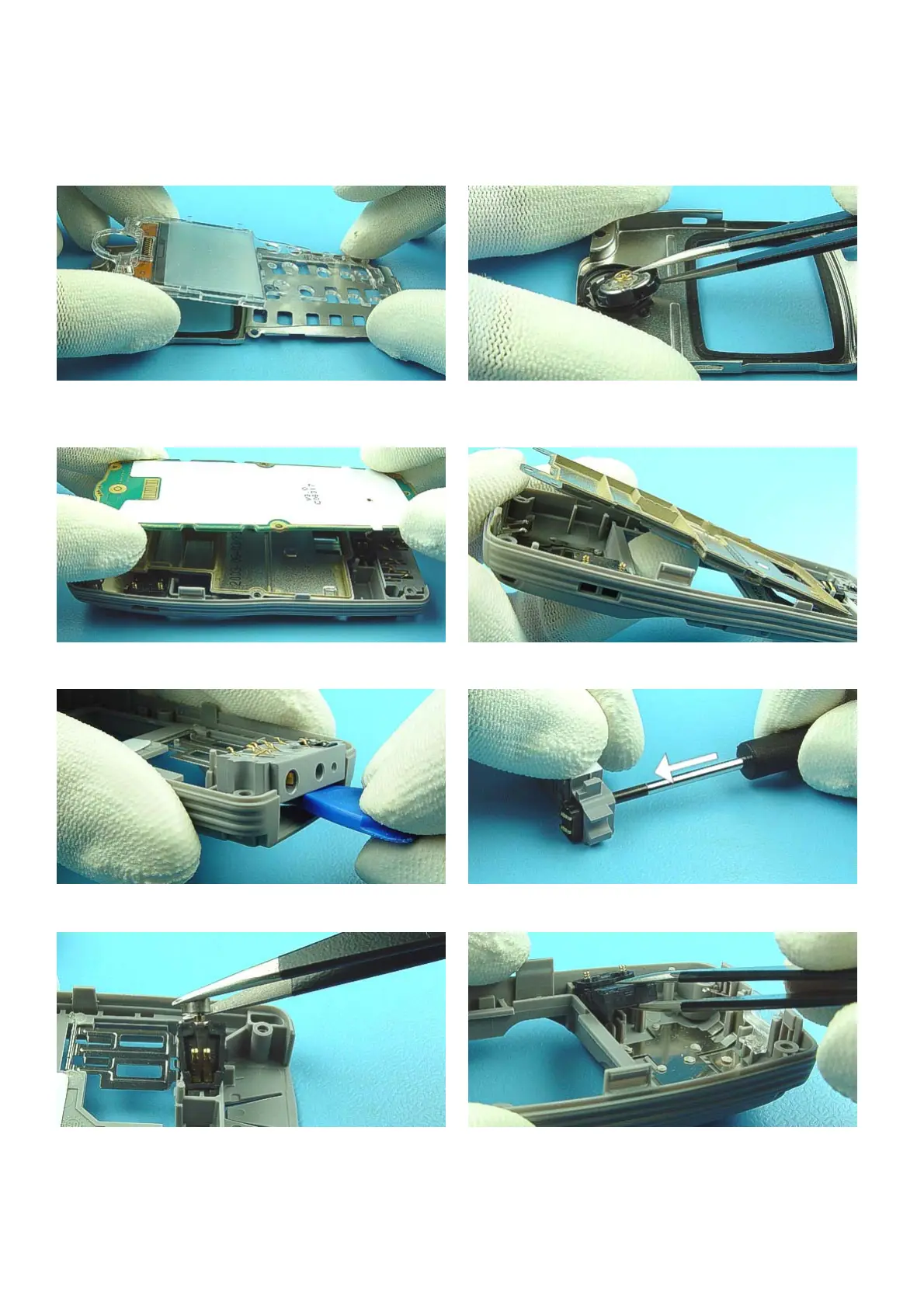

Remove LCD inclusive Lightguide. Use tweezers when removing the Speaker.
Take Engine Module from D-Cover. Lever out Shielding, beginning from the top side of the
unit.
If System Connector is tight in the D-Cover, SRT-6
should be used to loosen it.
Carefully push out Microphone from System Connector.
Moderate force is required for this action.
Lever out Vibra Motor with tweezers. Remove Buzzer from its guidance. Do not damage the
spring contacts.

Nokia 1100 Specifications

General

FM radio	No
Ringer type	Monophonic
Operating frequency	900, 1800 MHz
Product color	Black
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Talk time (2G)	4.5 h
Standby time (2G)	6.5 h
Display type	-
Display resolution	96 x 65 pixels

Weight and Dimensions

Depth	46 mm
Width	106 mm
Height	20 mm
Weight	86 g
