Nokia 1100 Service Manual

nokia
CONNECTING PEOPLE
PAGE 7 (18) Approved 2.0
CMO Operations & Logistics
MWy
WW Service Solutions & Development
Confidential 16.06.2005
Bochum / Germany
Service Manual 1100/1101 Level 1&2 Copyright 2003-2005 © Nokia Corporation

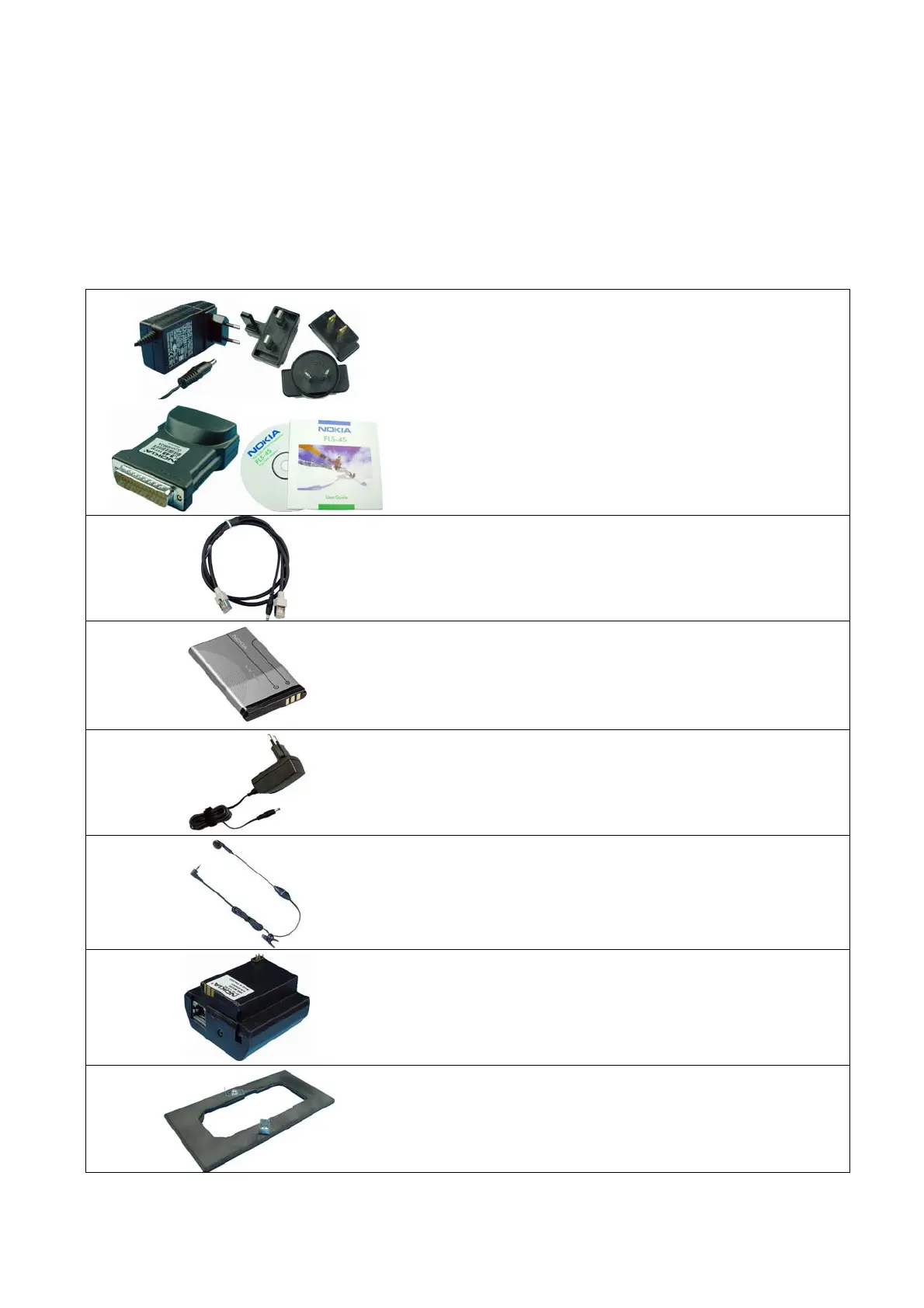

5. SERVICE TOOLS
ACF-8
Universal Power Supply is used to power FLS-4S.
FLS-4S incl. Driver and User Guide
is a dongle and flash device incorporated into one package,
developed specifically for POS use.
XCS-1
Service Cable is used to connect FLS-4S to SF-10.
Internal Battery BL-5C
Inserted under the back cover, this Li-ion battery provides
power in a lightweight package.
Travel Charger ACP-8E/ACP-8X
Lightweight multi-voltage charger for charging your phone
battery.
Headset HDC-5
An easy and convenient handsfree solution with remote
control.
SF-10
POS Flash Adapter is used in POS (Point of Sales)
environment for software updating. It provides controlled
supply voltage and necessary connections between the
phone and the Flash Device. It substitutes for the phone’s
standard battery during the software update.
RJ-12
Soldering Jig (for Level 2 or higher service level supplier)

Nokia 1100 Specifications

General

FM radio	No
Ringer type	Monophonic
Operating frequency	900, 1800 MHz
Product color	Black
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Talk time (2G)	4.5 h
Standby time (2G)	6.5 h
Display type	-
Display resolution	96 x 65 pixels

Weight and Dimensions

Depth	46 mm
Width	106 mm
Height	20 mm
Weight	86 g
