Nokia 1100 Service Manual

nokia
CONNECTING PEOPLE
PAGE 9 (18) Approved 2.0
CMO Operations & Logistics
MWy
WW Service Solutions & Development
Confidential 16.06.2005
Bochum / Germany
Service Manual 1100/1101 Level 1&2 Copyright 2003-2005 © Nokia Corporation
6. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please
check always the latest version of flash software, which is available on Nokia Partner Web Site

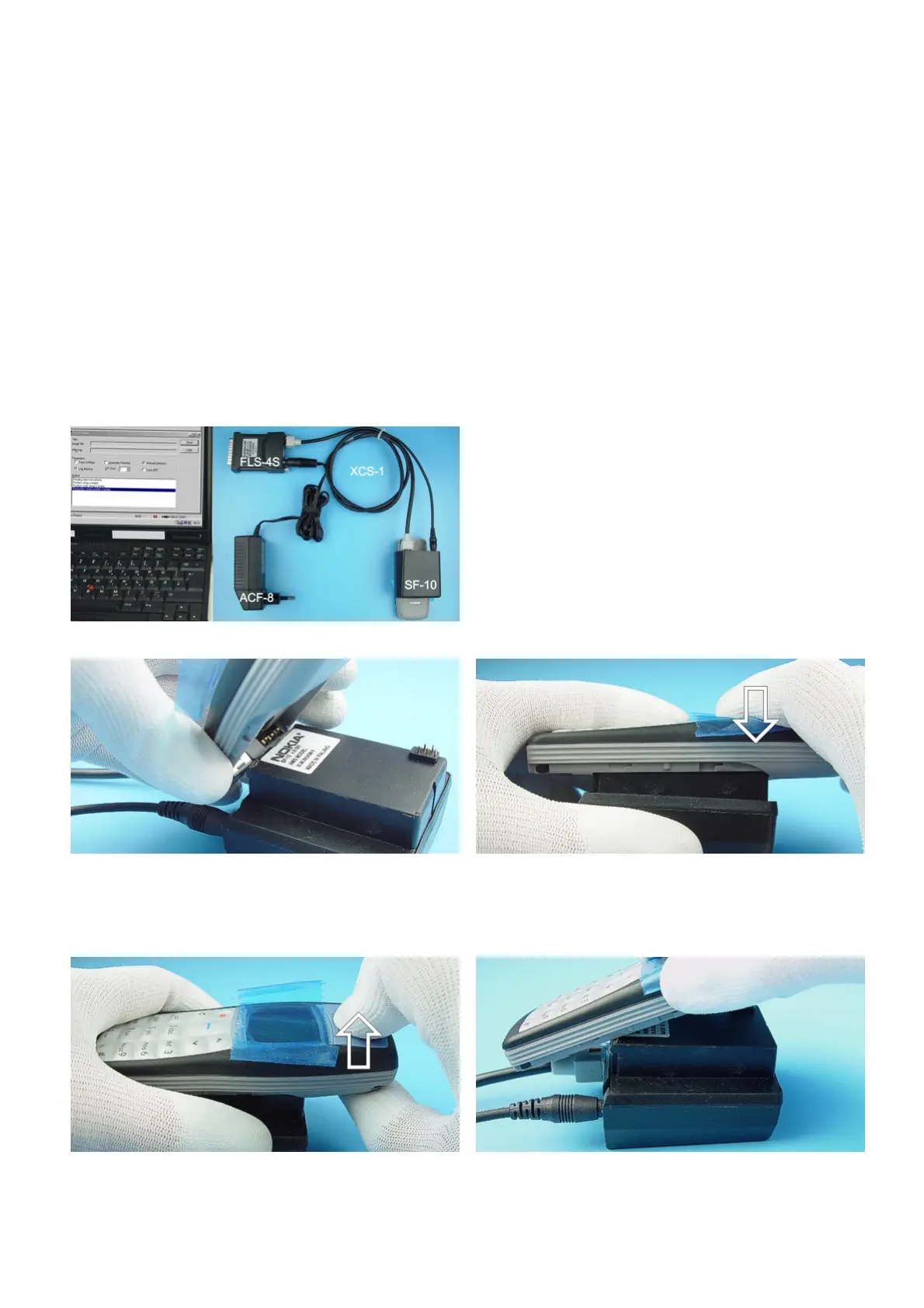

Flash Concept – (Point of Sales)
It is very important to follow this insertion and
removal procedure otherwise the contact pins of
Flash Adapter will be damaged.
Note: the Battery Connector in comparison with
other products is located on the bottom side of the
phone. Before starting the flash process, be sure that
SIM Lid is closed. Insert the Flash Adapter SF-10 like a
battery, start at the Battery Connector side.
Now, push down the top side of the Phone, do not use
too much force.
When removing the Flash Adapter always start from
the top side.
Now, take away the unit.

Nokia 1100 Specifications

General

FM radio	No
Ringer type	Monophonic
Operating frequency	900, 1800 MHz
Product color	Black
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Talk time (2G)	4.5 h
Standby time (2G)	6.5 h
Display type	-
Display resolution	96 x 65 pixels

Weight and Dimensions

Depth	46 mm
Width	106 mm
Height	20 mm
Weight	86 g
