Service concepts
POS (Point of Sale) flash concept

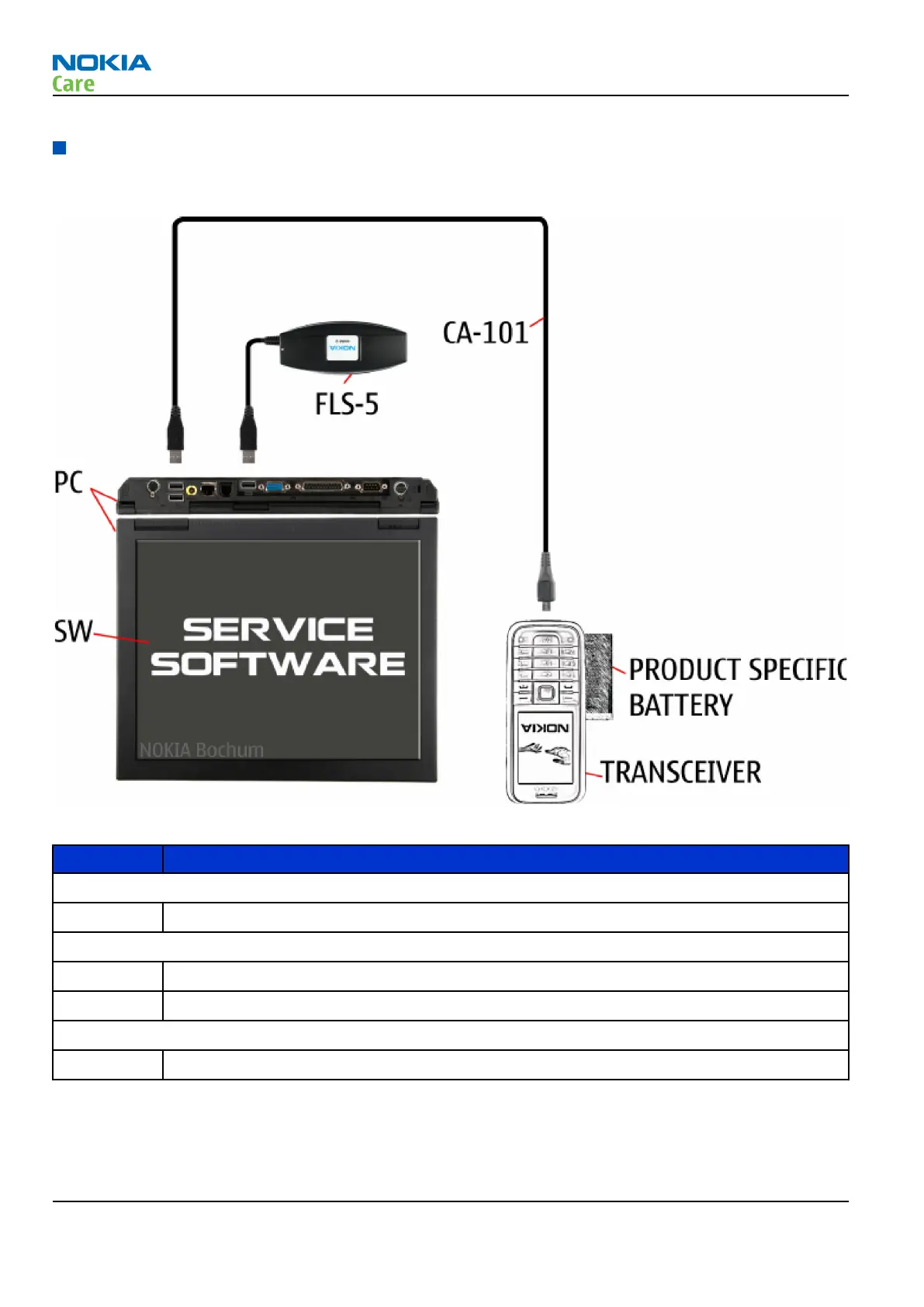

Figure 3 POS flash concept
Type
Description
Product specific tools
BL-4S
Battery
Other tools
FLS-5
POS flash dongle
PC with Phoenix service software
Cables
CA-101
USB connectivity cable
RM-352; RM-354
Service Devices and Service Concepts
Page 2 –16
COMPANY CONFIDENTIAL
Issue 1
Copyright © 2008 Nokia. All rights reserved.
35
37
Table of Contents
Table of Contents
15
Warnings and Cautions
4
Battery Information
8
Product Selection
17
Phone Features
17
Figure 1 RM-352 (Nokia 3600 Slide) Product Picture
17
Figure 2 RM-354 (Nokia 7610 Supernova) Product Picture
17
User Interface and Software Features
18
Accessories
19
Technical Specifications
19
General Specifications
19
Table 1 Battery and Chargers
19
Table 2 Headsets
19
Table 3 Data Cables
19
Battery Endurance
20
COMPANY CONFIDENTIAL Page
21
Table of Contents
23
Rm-352; Rm
24
Service Devices
25
Product Specific Devices
25
General Devices
27
Cables
33
Ca-35S
34
Service Concepts
36
POS (Point of Sale) Flash Concept
36
Flash Concept with FPS-10
37
Flash Concept with FPS-10
38
Module Jig Service Concept
39
RF Testing Concept with RF Coupler
40
Service Concept for RF Testing and RF/BB Tuning
41
List of Figures
45
Baseband Self Tests in Phoenix
47
Power and Charging Troubleshooting
49
Dead or Jammed Device Troubleshooting
49
General Power Checking
51
Charging Troubleshooting
51
Interface Troubleshooting
53
Flash Programming Fault Troubleshooting
53
Combo Memory Troubleshooting
55
USB Interface Troubleshooting
56
SIM Card Troubleshooting
57
User Interface Troubleshooting
58
Keypad Troubleshooting
58
Display Module Troubleshooting
58
General Instructions for Display Troubleshooting
58
Display Troubleshooting
59
Keyboard Backlight Troubleshooting
61
Camera Troubleshooting
62
Troubleshooting
62
Camera and HWA HW Troubleshooting
63
Camera AF Troubleshooting
65
Camera Flash Troubleshooting
66
Audio Troubleshooting
67
Audio Troubleshooting Test Instructions
67
Test Procedure
67
Internal Earpiece Troubleshooting
71
Internal Microphone Troubleshooting
72
Internal Handsfree (IHF) Troubleshooting
73
External Earpiece Troubleshooting
74
Vibra Troubleshooting
75
TV out Troubleshooting
76
Baseband Manual Tuning Guide
76
Certificate Restoring for BB5 Products
76
Energy Management Calibration
82
Table of Contents
85
General RF Troubleshooting
87
Introduction to RF Troubleshooting
87
RF Key Components
88
Auto Tuning for RF
88
General Voltage Checking
89
Selftest Troubleshooting
90
RF Selftests
90
Fatal Selftests Troubleshooting
92
Receiver Troubleshooting
95
Introduction to Receiver (RX) Troubleshooting
95
GSM RX Chain Activation for Manual Measurements/Gsm RSSI Measurement
96
Transmitter Troubleshooting
97
General Instructions for Transmitter (TX) Troubleshooting
97
GSM Transmitter Troubleshooting
97
Bluetooth and FM Radio Troubleshooting
99
Bluetooth Troubleshooting
99
FM Radio Troubleshooting
100
Table of Contents
103
Introduction
105
Phone Description
105
System Module Block Diagram
107
Energy Management
108
Battery and Charging
108
Normal and Extreme Voltages
109
Power Key and System Power-Up
109
Modes of Operation
109
USB, SIM, Μsd
110
Micro USB Interface
110
SIM Interface
110
Μsd Card Interface
111
User Interface
112
Display Module
112
Keyboard
112
Backlight and Illumination
113
Audio Concept
114
AV Connector
115
RF Description
116
Receiver (RX)
116
Transmitter (TX)
117
Bluetooth
118
Technical Specifications
118
Main RF Characteristics for GSM Band Phone
118
Environmental Conditions
119
