Note: The Error Code contains the two first words:
0x00
and
0xC0
.
Fatal selftests troubleshooting
If a self test is fatal, check the DetailsError code and follow the instructions below.
Note: If ST_CDSP_RF_BB_IF_TEST is fatal, the other self tests will also be fatal. Always start
troubleshooting ST_CDSP_RF_BB_IF_TEST.

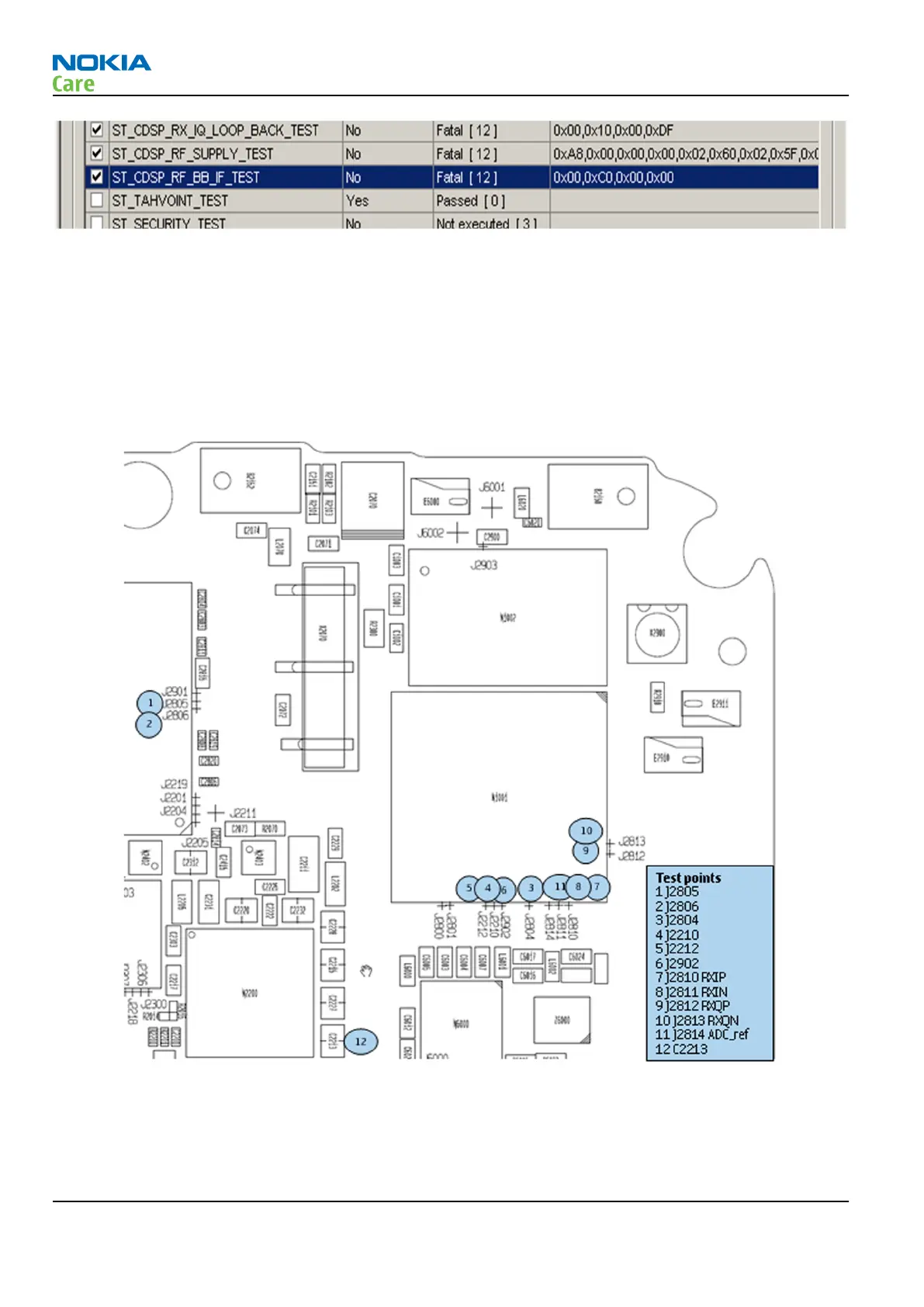

Figure 17 Testpoints used after fatal self tests
ST_CDSP_RF_BB_IF_TEST is fatal
This test is checking the communication between baseband and RF. It will show in what part the problem is
located.
RM-352; RM-354
RF troubleshooting
Page 4 –10 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
