The main RX troubleshooting measurement is RSSI reading. This test measures the signal strength of the
received signal. For GSM RSSI measurements, see
GSM RX chain activation for manual measurements/GSM
RSSI measurement
.
GSM RX chain activation for manual measurements/GSM RSSI measurement
Prerequisites
Make the following settings in Phoenix service software and in the signal generator:
Setting GSM850 GSM900 GSM1800 GSM1900
Phoenix Channel 190 37 700 661
Signal generator
to antenna
connector
881.66771 MHz
(67.71kHz offset)
at -60dBm
942.46771 MHz
(67.71kHz offset)
at -60dBm
1842.86771 MHz
(67.71kHz offset)
at -60dBm
1960.06771 MHz
(67.71kHz offset)
at -60dBm
Steps
1. Set the phone to local mode.

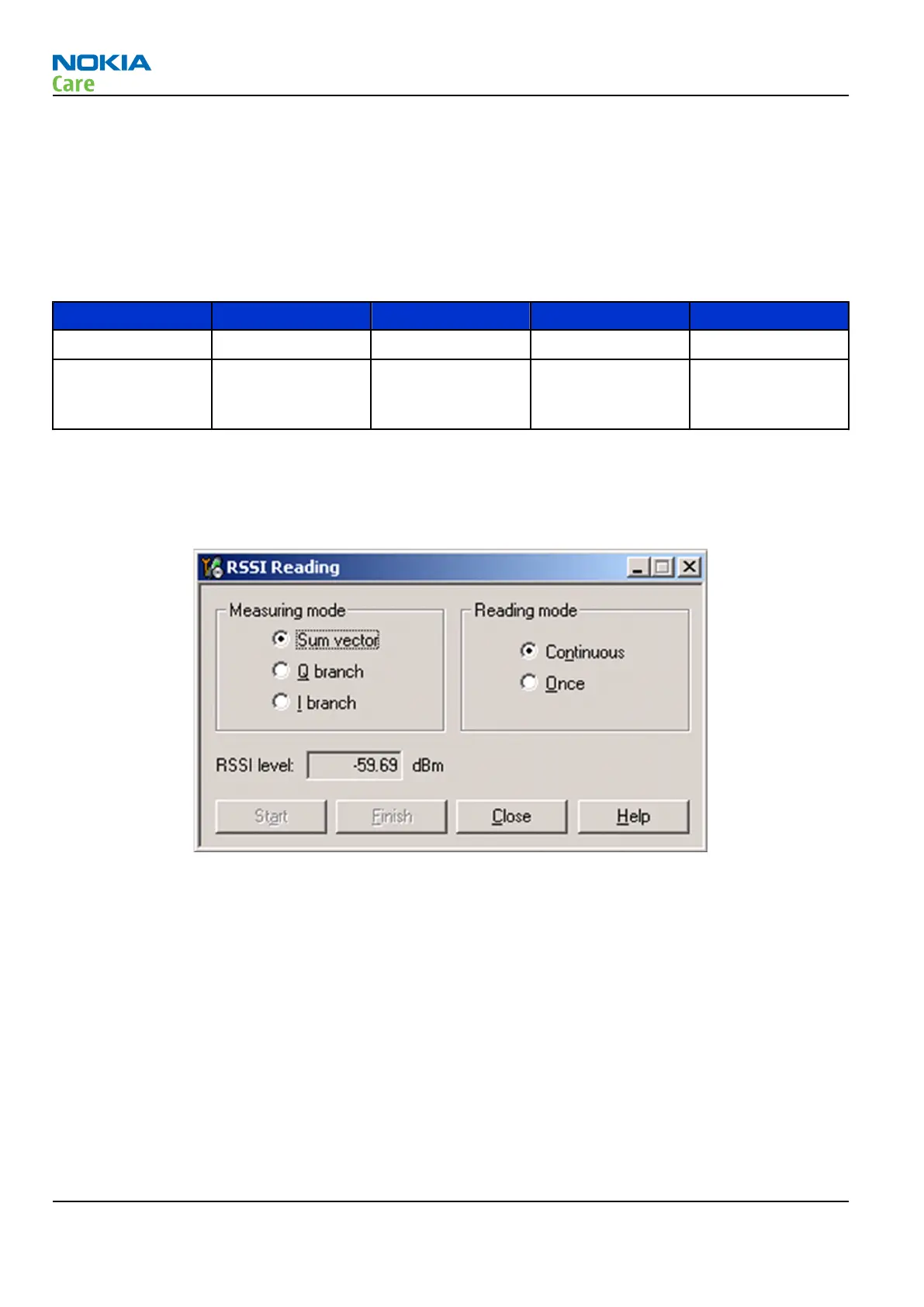

2. Activate RSSI reading in Phoenix (TestingGSMRSSI reading )
Results
With the
Measuring mode
set to
Sum vector
, the reading should reflect the level of the signal generator (-
losses) +/- 5 dB.
When varying the level in the range -30 to -102 dBm the reading should then follow within +/-5 dB.
Now select the measuring mode to
Q branch
and
I Branch
. In each case the reading should be 3 dB below
the signal generator level.
Next actions
RSSI-reading AND TX troubleshooting is failing: replace N1002.
TX is OK and RX is failing: replace N1001.
RM-352; RM-354
RF troubleshooting
Page 4 –14 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
