4. Change power level (RF controls) and make sure the power reading follows accordingly.
Next actions
TX is failing and RX is OK: replace N1002
If you want to troubleshoot the other bands, change band with RF controls and set the communication
analyzer accordingly.
Bluetooth and FM radio troubleshooting
Bluetooth troubleshooting
Troubleshooting flow

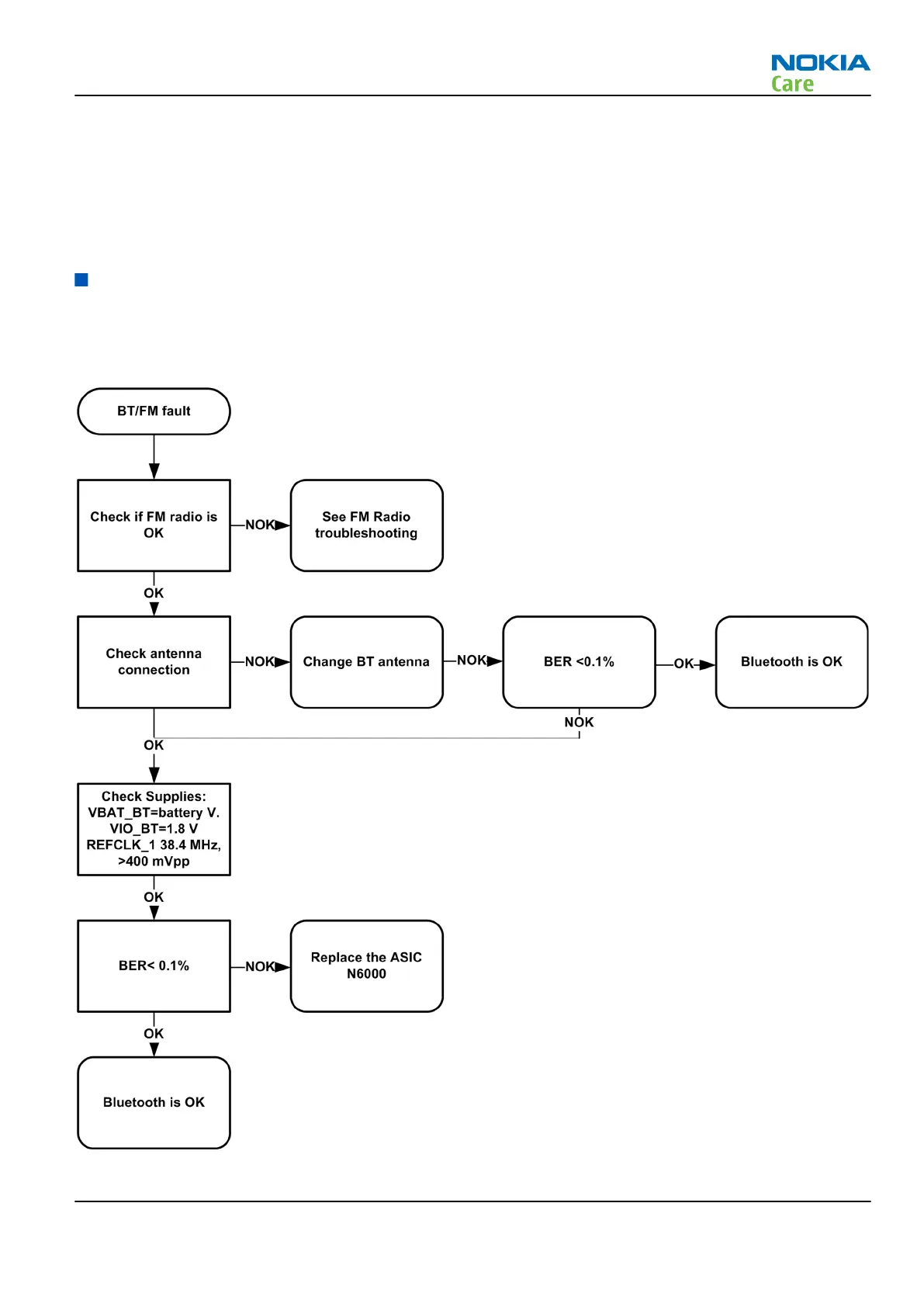

Figure 22 Troubleshooting diagram: Bluetooth
RM-352; RM-354
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –17
Copyright © 2008 Nokia. All rights reserved.
