Steps
1.

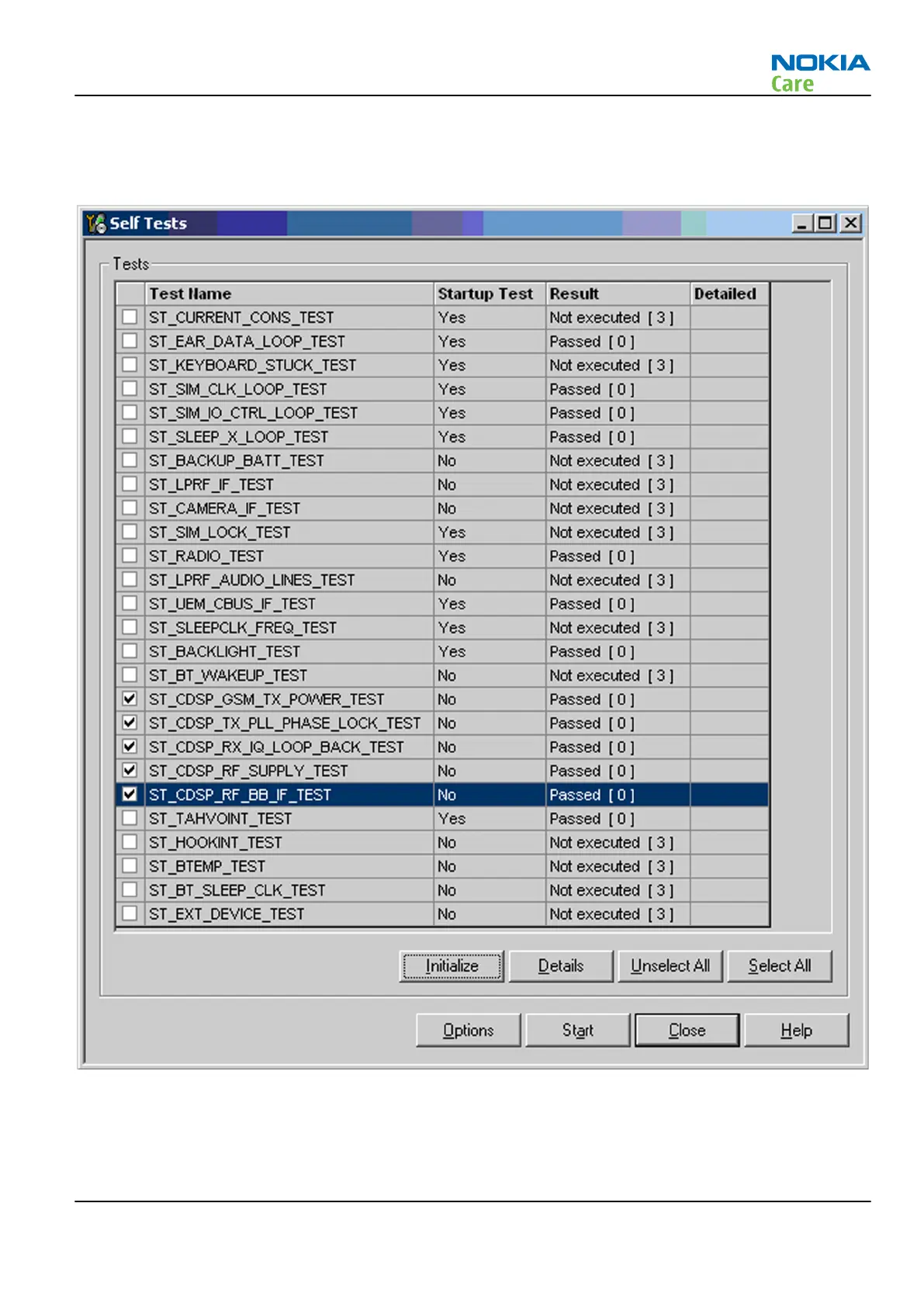

Check the tests shown in the figure below:
Testing
→
Self Tests
, and press the
Start
button.
2.
A test is either Passed or Fatal. If
Fatal
continue the selftest troubleshooting. If
Passed
continue with the
other RF troubleshootings.
3.
If Fatal, press
Details
to see error codes
Error codes will now show up in the right most column marked
Detailed
.
RM-352; RM-354
RF troubleshooting
Issue 1
COMPANY CONFIDENTIAL
Page 4 –9
Copyright © 2008 Nokia. All rights reserved.
90
92
