Measurement data

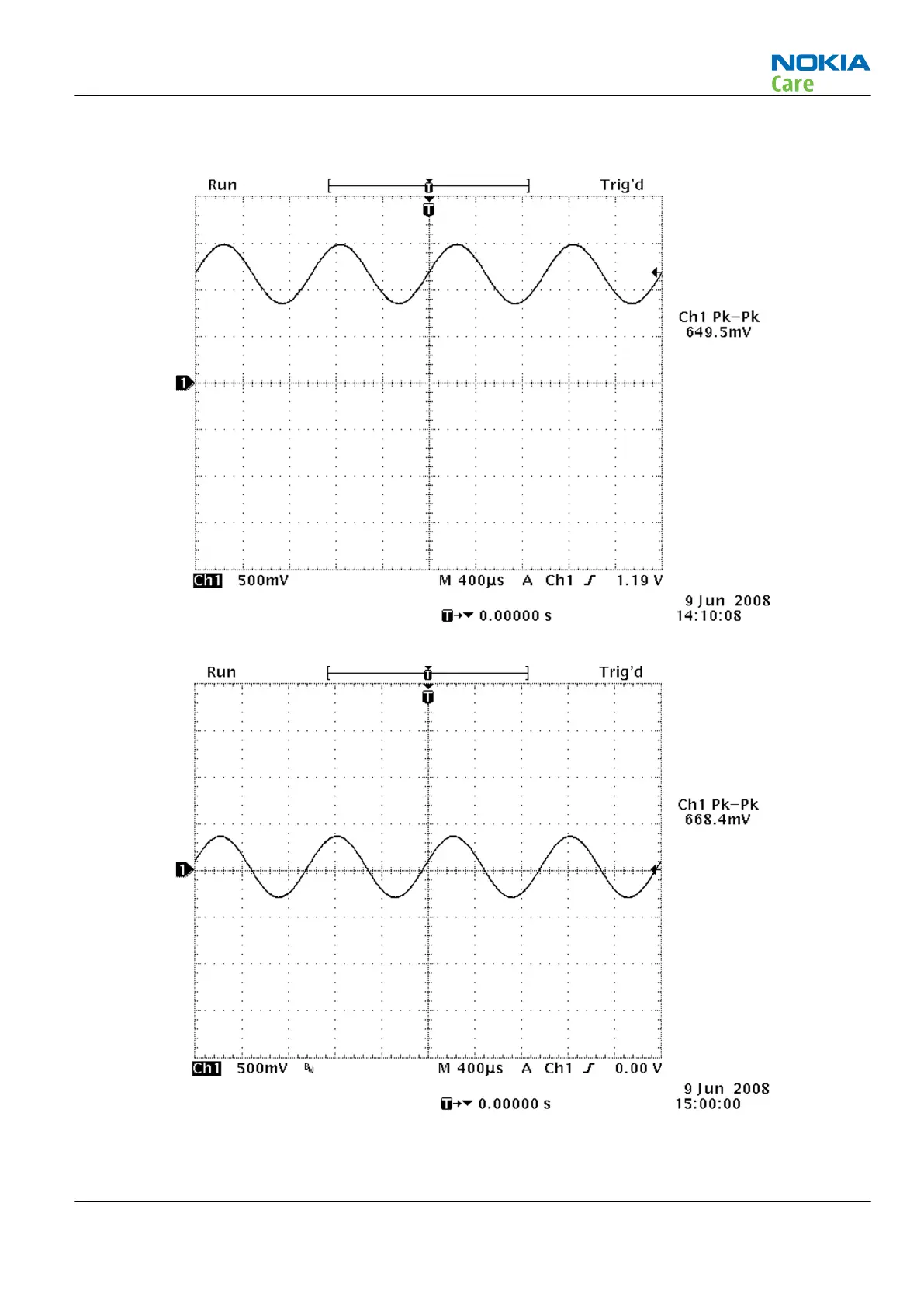

Figure 11 Single-ended output waveform of the Ext_in_HP_out measurement.
If a special low-pass filter designed for measuring digital amplifiers is unavailable, the measurement must be performed with a
current probe and the input signal frequency must be 2kHz.
Figure 12 Differential output waveform of the Ext microphone in out loop measurement Int handsfree out.
RM-352; RM-354
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 –27
Copyright © 2008 Nokia. All rights reserved.
