Nokia FastMile 4G Receiver Product Overview
Issue: 01 DRAFT 3TG-00386-ABAA-TCZZA 53
DRAFT
Blue
First priority
Blinking
Bluetooth connection in progress
Solid
Bluetooth connection established
Off
No Bluetooth connection
Red
Second priority
Blinking
Critical alarm
Solid
Major or minor alarm
Off
No alarm
Green
Third priority
Blinking twice per second
Kernel and application start up
Blinking one per second
Application start up
Solid
Start up
Off
OAM link is established

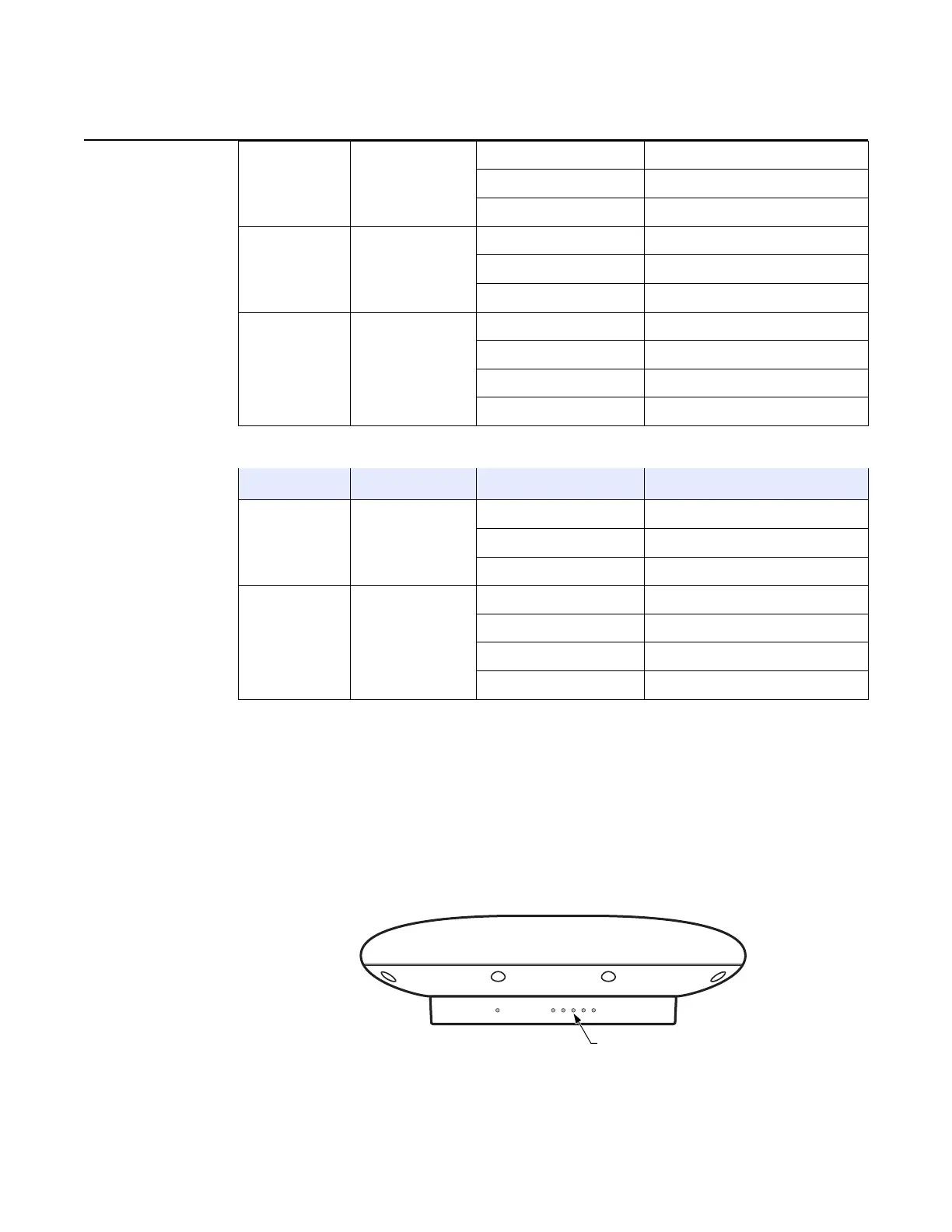

Table 10 Status LED behavior for Nokia FastMile 4G Receiver managed
from an ACS
LED color
LED priority
LED behavior
Status information
Blue
First priority
Blinking
Bluetooth connection in progress
Solid
Bluetooth connection established
Off
No Bluetooth connection
Green
Second priority
Blinking twice per second
Kernel and application start up
Blinking one per second
Application start up
Solid
Start up
Off
Software is stable
10.2 Signal strength LEDs
Five signal strength LEDs are provided on the Compact multi-band models of the
Nokia FastMile 4G Receiver as shown in Figure 18.
LEDs
Figure 18 Location of the signal strength LEDs
28773
Signal strength LEDs
