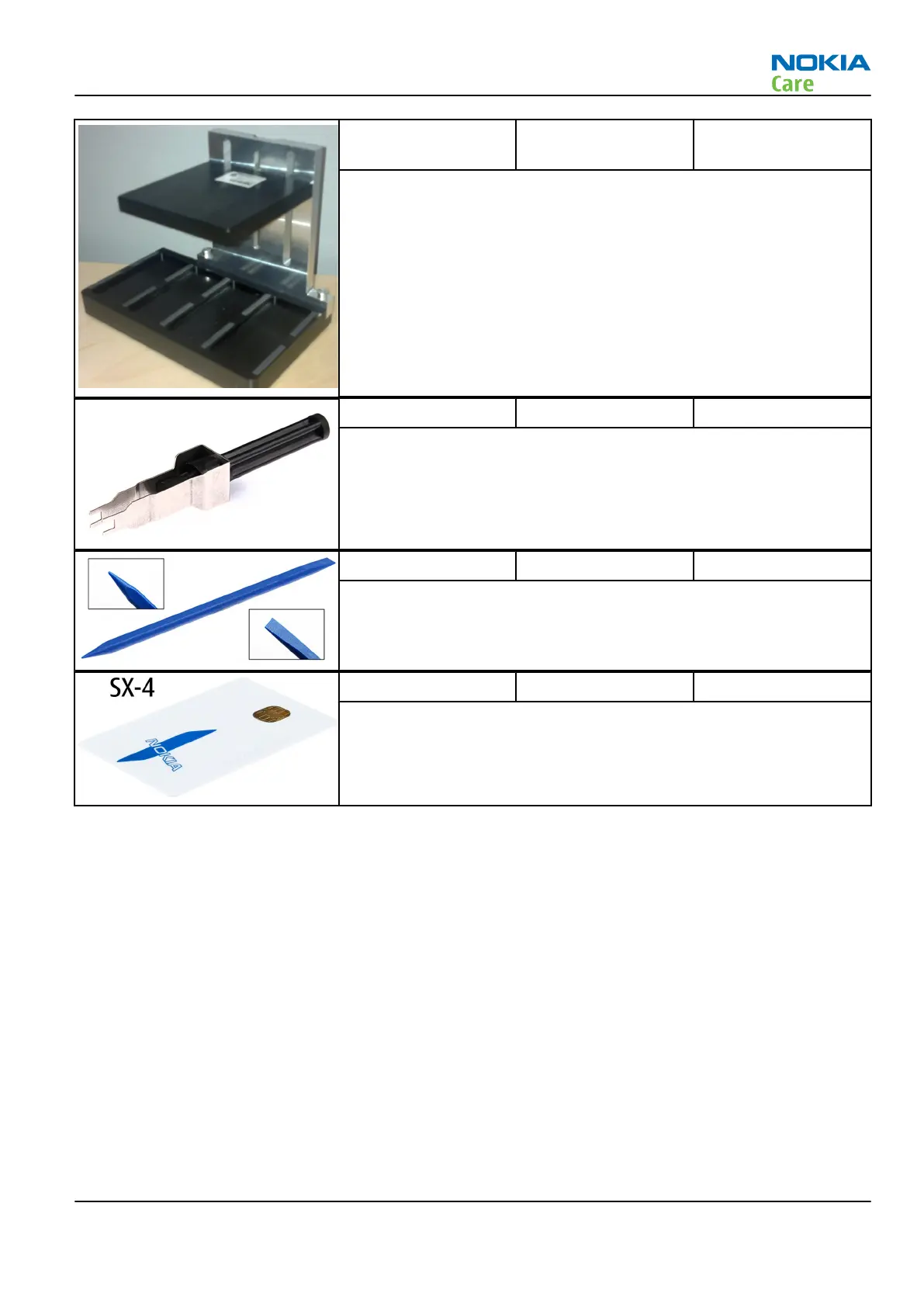

SS-267 Proximity tuning
reflector
The proximity tuning reflector tool SS-267 is used for proximity tuning.
SS-88 Camera removal tool
The camera removal tool SS-88 is used to remove/attach the camera
module from/to the camera socket of the phone PWB.
SS-93 Opening tool
SS-93 is used for opening JAE connectors.
Note: The SS-93 is included in Nokia Standard Toolkit.
SX-4 Smart card
SX-4 is a BB5 security device used to protect critical features in tuning
and testing.
SX-4 is also needed together with FPS-21 when DCT-4 phones are
flashed.
Cables
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-750. For the correct use of the service devices, and the best effort of workbench setup,
please refer to various concepts.
RM-750
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 – 9
Copyright © 2011 Nokia. All rights reserved.
