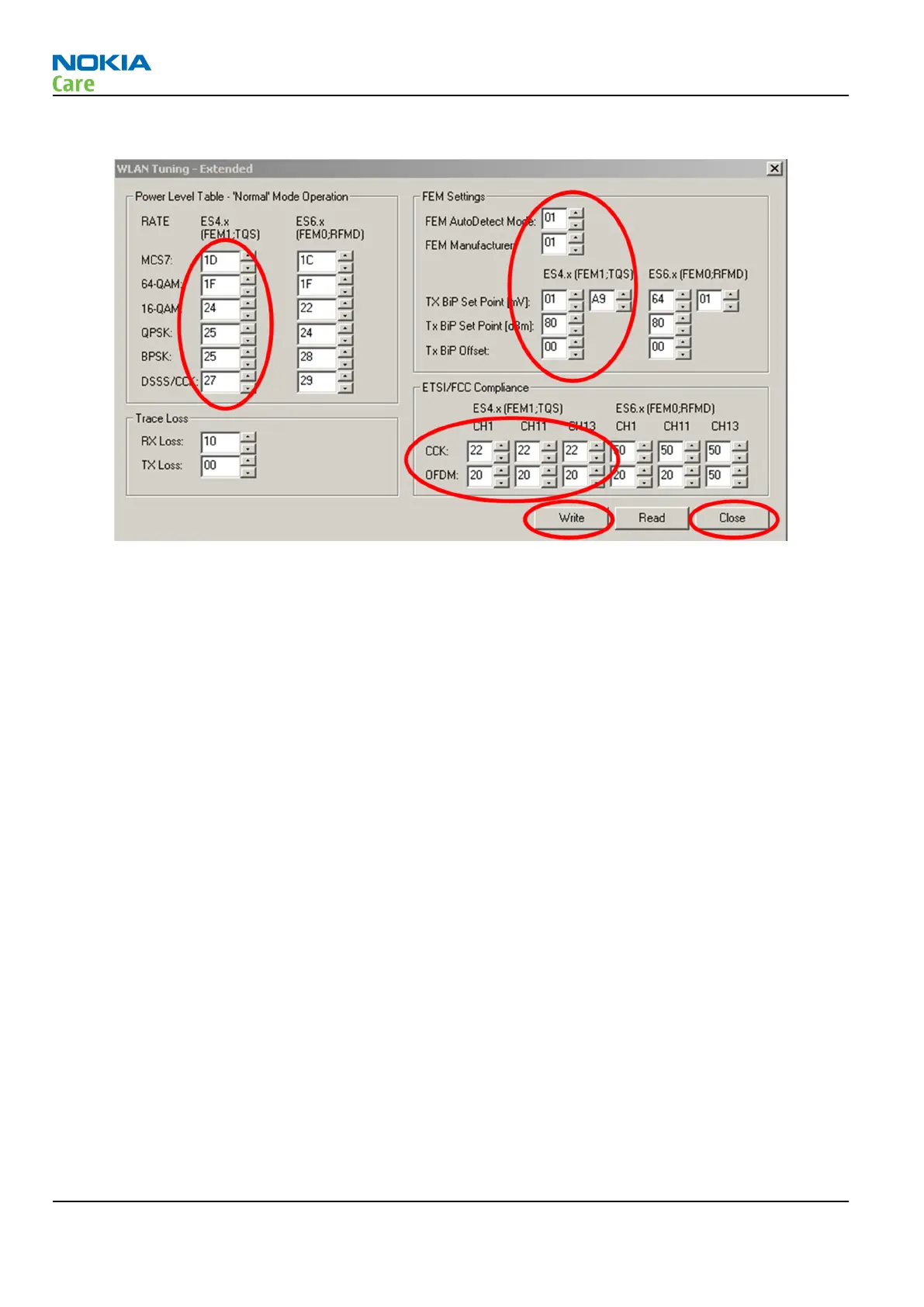

6. Open the Extended Tuning menu. See the following figure.
7. Type the correct tuning values. The values are circled in the figure above.
8. Click Write and Close.
9. Click Start Power Calibration and read the result from the Result box.
10. If TXPowerCal response returns ‘Passed’ results, the WLAN TX BiP test is successful.
WLAN TX BiP testing procedure in Care Suite Testing and Tuning Tool
Context
Note: No external measurement equipment is required as the calibration is completely handled
internally. RF cable and adapter losses do not need to be taken into account while WLAN TX tuning
is proceeded.
WLAN TX has been BiP (Build in Production line testing) tuned correctly in production. There is no reason to
do re-calibration unless the Jerry 1.0D (N6100) is changed or memory (D3000) is corrupted.
WLAN TX can be tuned automatically with Testing and Tuning Tool. It performs calibrations, tunings and
measurements of WLAN TX. The results are displayed and logged in a result file, if initiated.
Steps
1. Make sure the phone is connected to the PC.
RM-750
BB Troubleshooting and Manual Tuning Guide
Page 3 – 44 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.
