Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
24.Sept.2007
14
Service Manual 5200 RM-174/RM-181 / 5300 RM-146/RM-147
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (46)

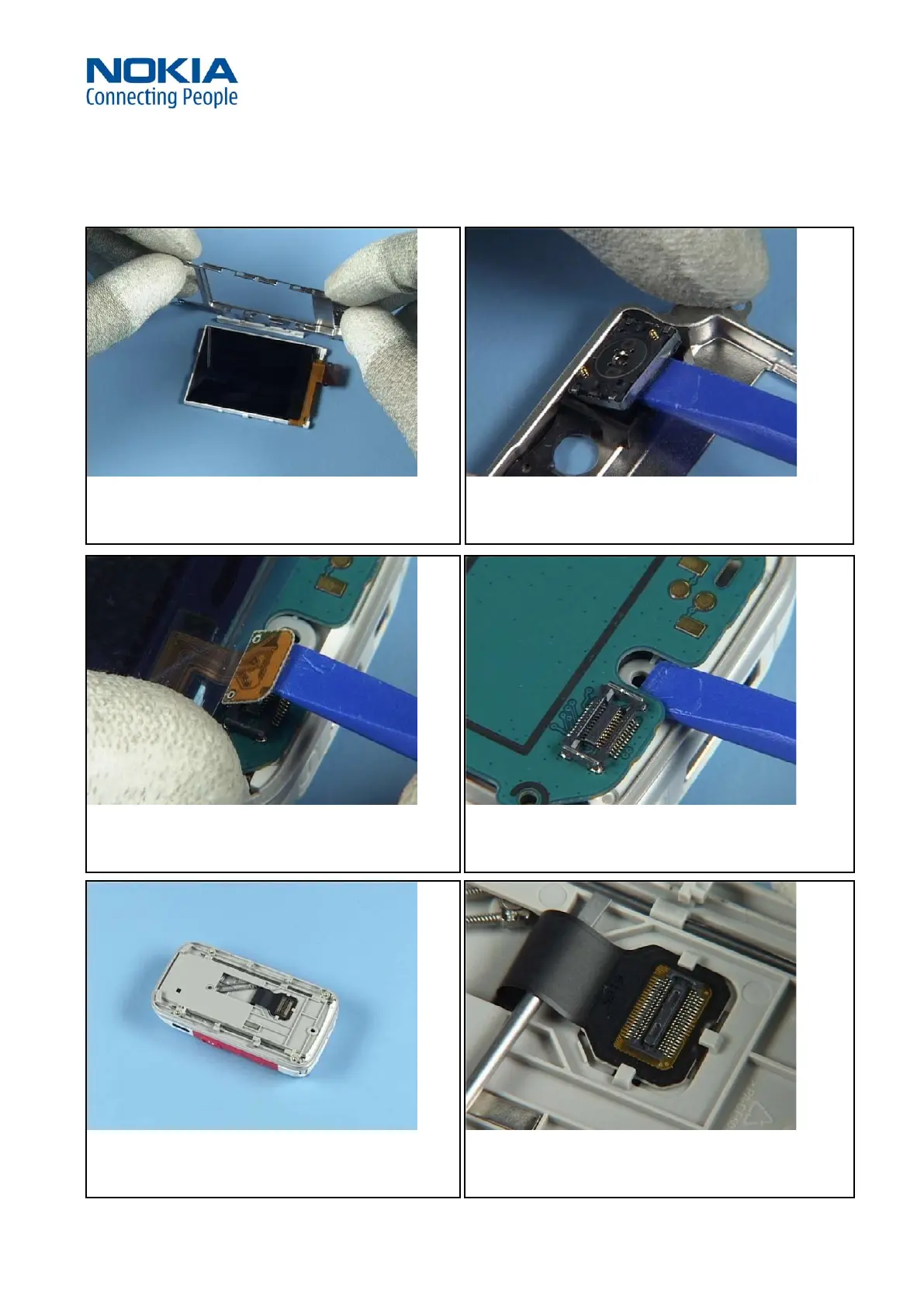

19. Now the LCD MODULE can be released from the UI SHIELD.
20. Lever out the EARPIECE.
21. Open the Flex Connector of the LCD MODULE.
22. Carefully lever up the TG UI MODULE. This will disconnect the
hidden B to B connector.
23. To remove the SIDE FLEX both parts of the phone must be
disassembled rst.
24. Start removing the connector of the SIDE FLEX by lifting it up
as shown rst.
