Service Manual 5200 RM-174/RM-181 / 5300 RM-146/RM-147
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page
(46)

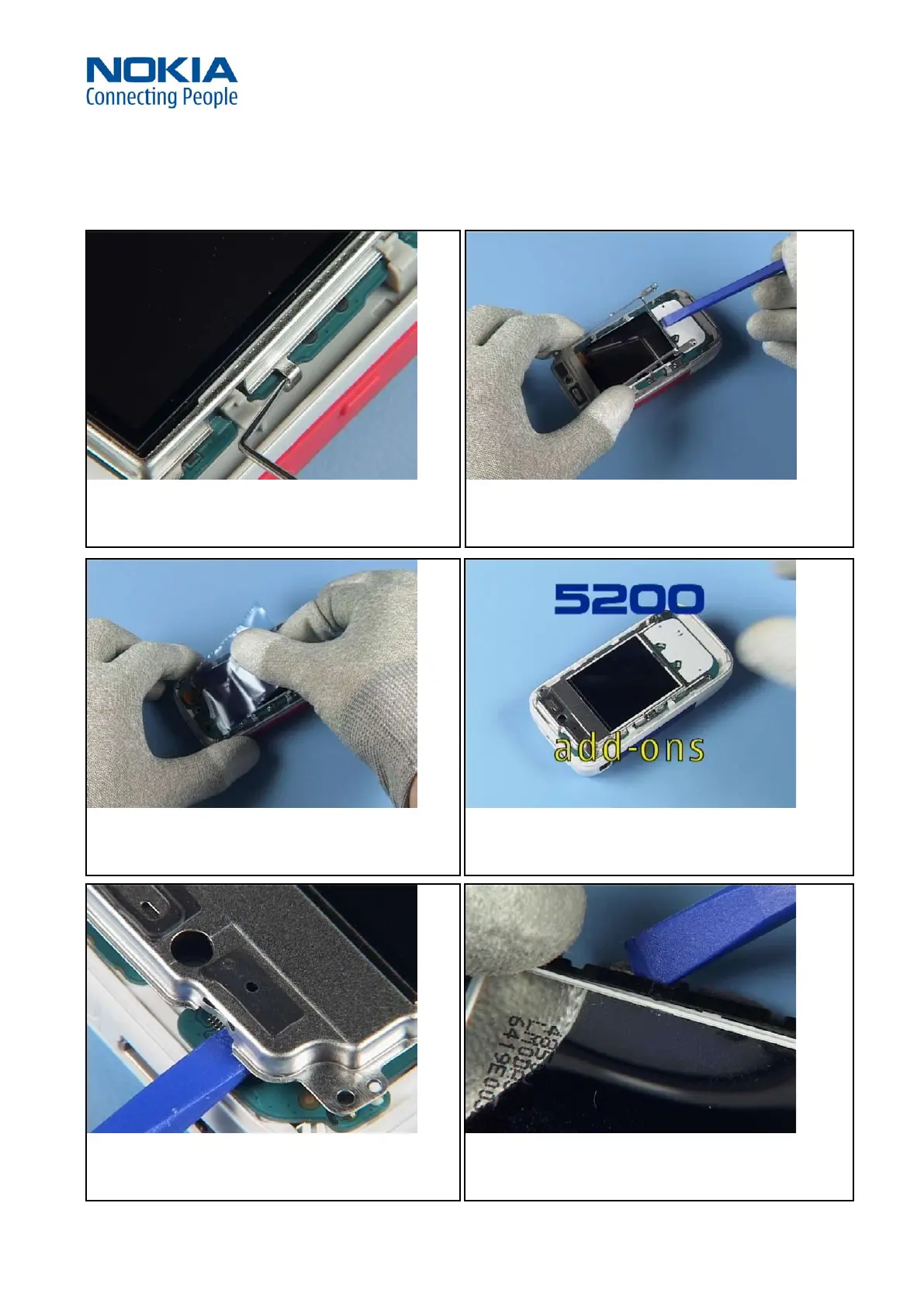

13. Carefully unlock both latches.
14. Lift up the UI SHIELD assembly.
15. Cover the LCD Module with a protective lm.
16. Nokia 5200 add-ons
17. After removing the screws carefully disconnect the LCD
MODULE connector with the SS-93.
18. Carefully lever out one LCD ADAPTER with the SS-93.
