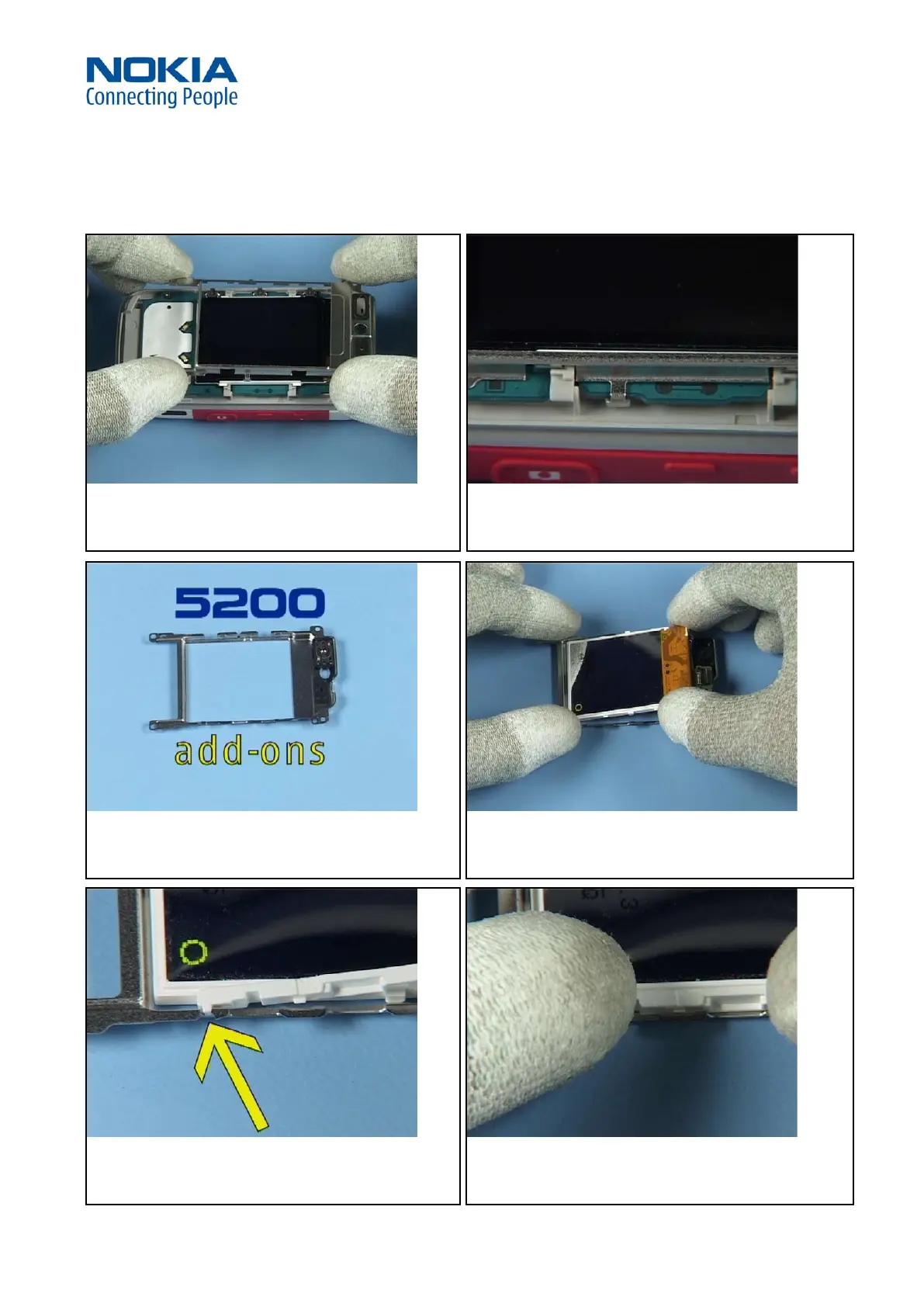

13. Now place the UI SHIELD over the assembly as shown.
14. Mind that the two snaps are clicked into their places.
15. Nokia 5200 add-ons
16. Peel up the protection lm from the LCD and place it into the
UI SHIELD.
17. Insert the rst LCD ADAPTER and push it into its place.
18. Mind the guide while pushing down evenly.
