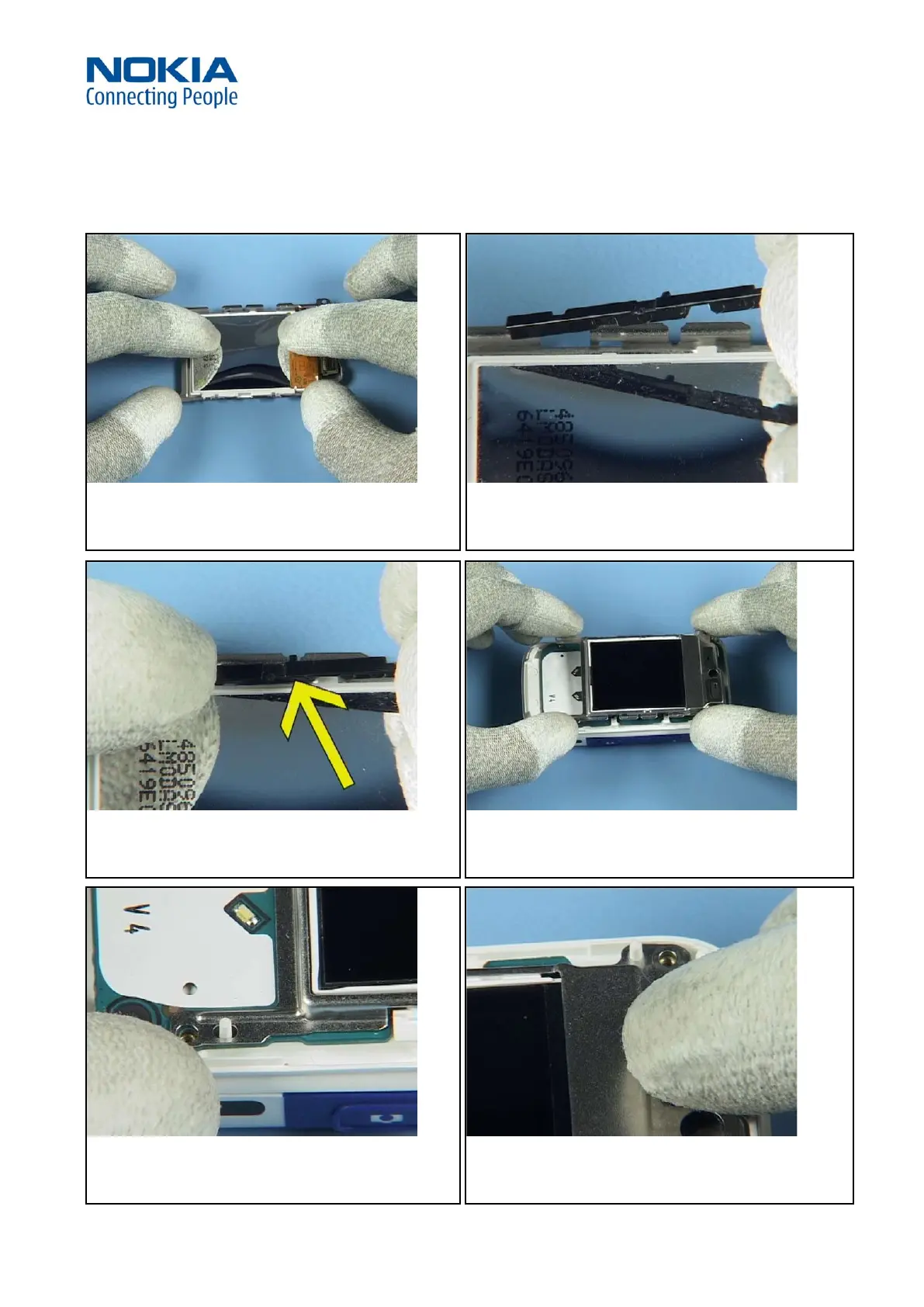

19. Slightly shift down the LCD MODULE as shown.
20. Insert the opposite LCD ADAPTER now.
21. Mind the guide and push it down evenly.
22. Now place the UI SHIELD over the assembly as shown.
23. Mind the guides.
24. Close the LCD Module connector.
