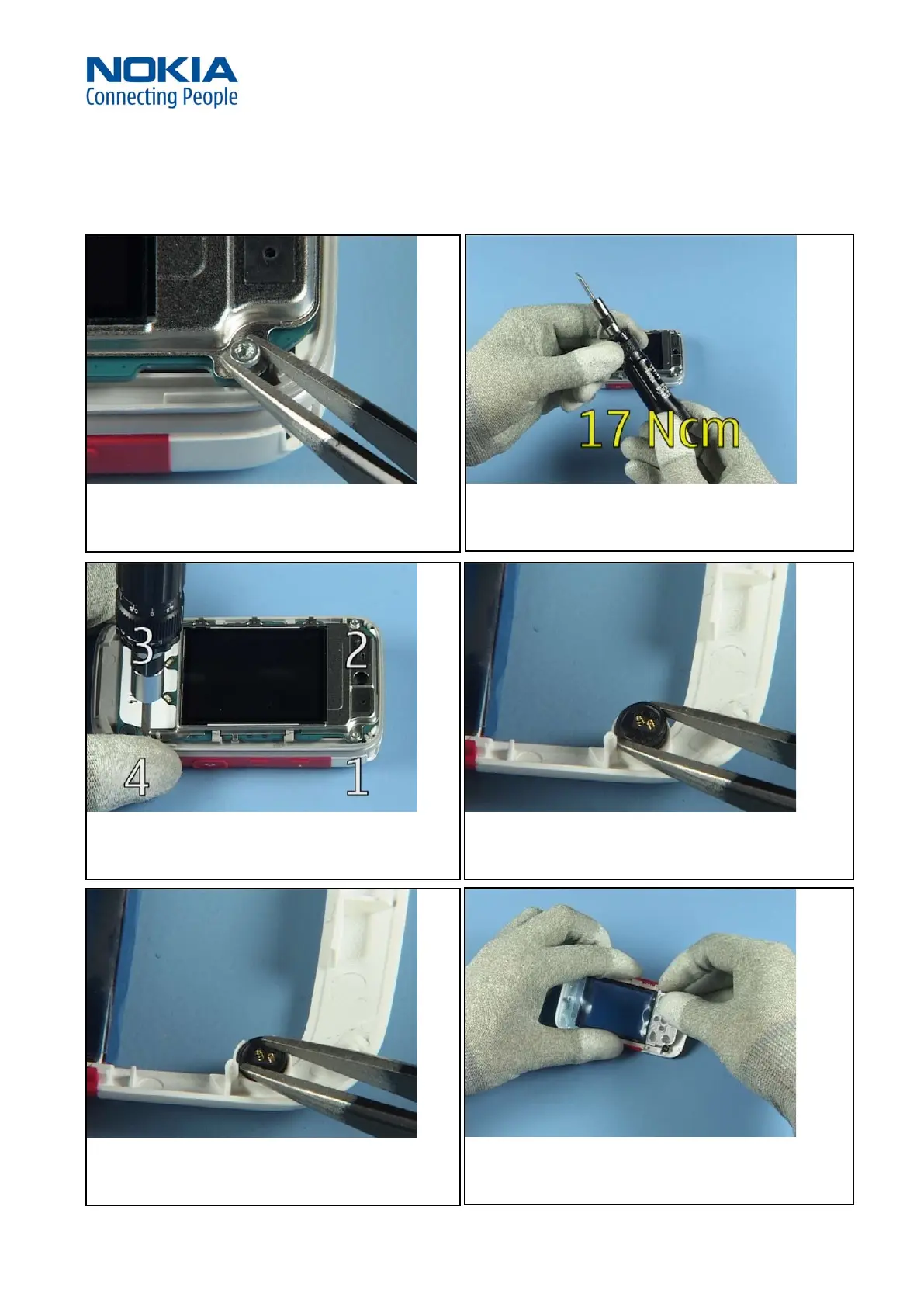

25. Insert the screws.
26. Set the correct torque.
27. Apply the torque to all screws in the order shown.
28. Insert the MICROPHONE.
29. Note that the spring contacts are very delicate and can be
bent easily.
30. Fit the FUNCTIONAL KEYMAT.
