Nokia 5630 XPRESSMUSIC

5630 XpressMusic RM-431, RM-432
Service Manual Level 1&2
20 CONFIDENTIAL
11. ASSEMBLY HINTS

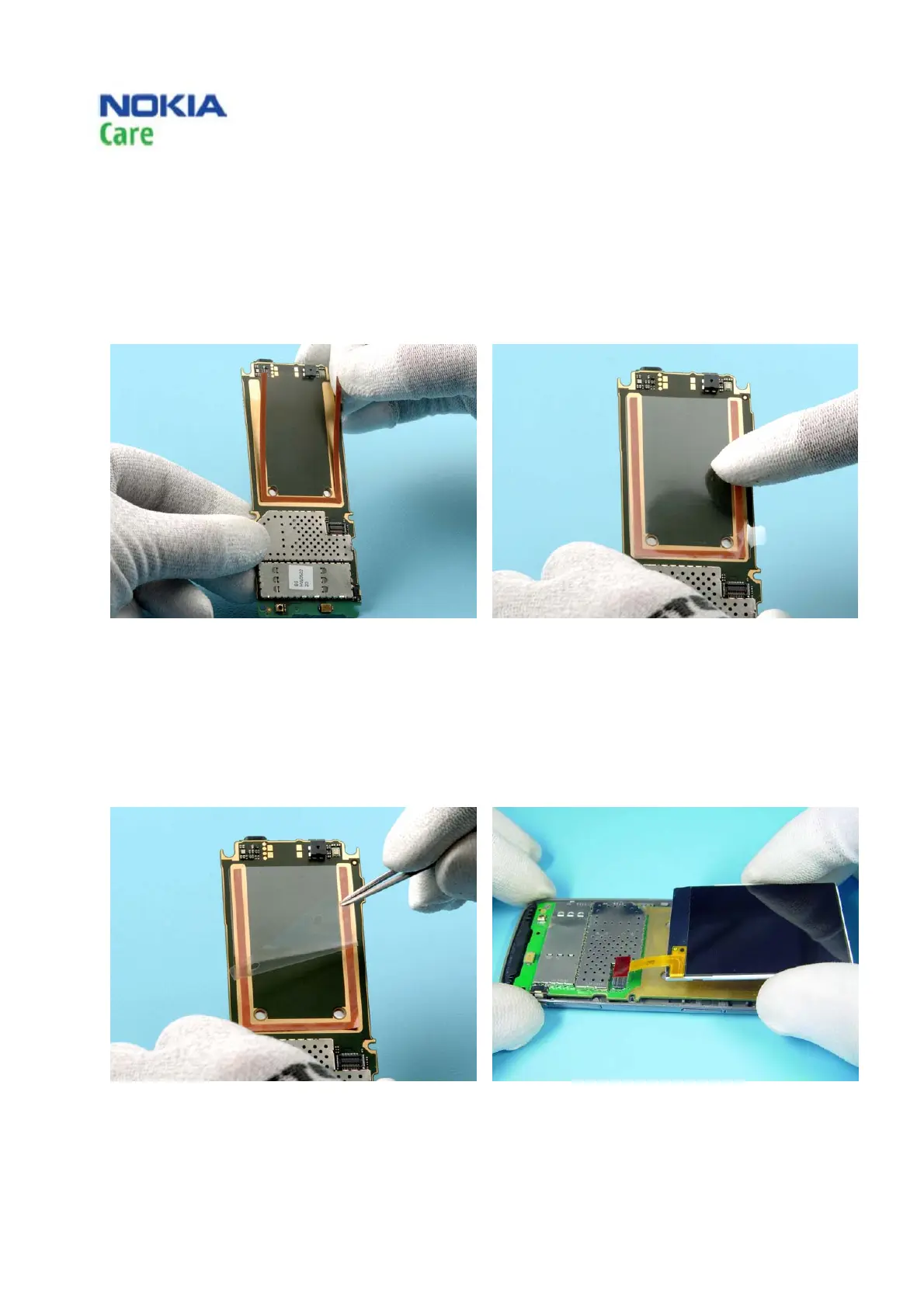

11.1 Assembling the LCD FLEX
1
2
Position the holes in the protective foil of the LCD
ADHESIVE into the holes on the PWB and then
place the U-shaped LCD ADHESIVE on the U-shaped
copper area of the PWB.
Note that the liner of the LCD ADHESIVE can be
used as a guide when aligning and placing the
LCD ADHESIVE on the PWB.
Make sure that the LCD ADHESIVE is glued to the
PWB.
3
4a
Remove the protective foil with tweezers. Attach the LCD connector (part 1).
