Nokia 5630 XPRESSMUSIC

5630 XpressMusic RM-431, RM-432
Service Manual Level 1&2
23 CONFIDENTIAL
11.2 Assembling the EARPIECE
When you are assembling the EARPIECE, you need to first remove the protective tape
from the EARPIECE. Use tweezers to assemble the EARPIECE and be careful of the
strings.
11.3 Assembling the 2
ND
CAMERA BOOT
1
2

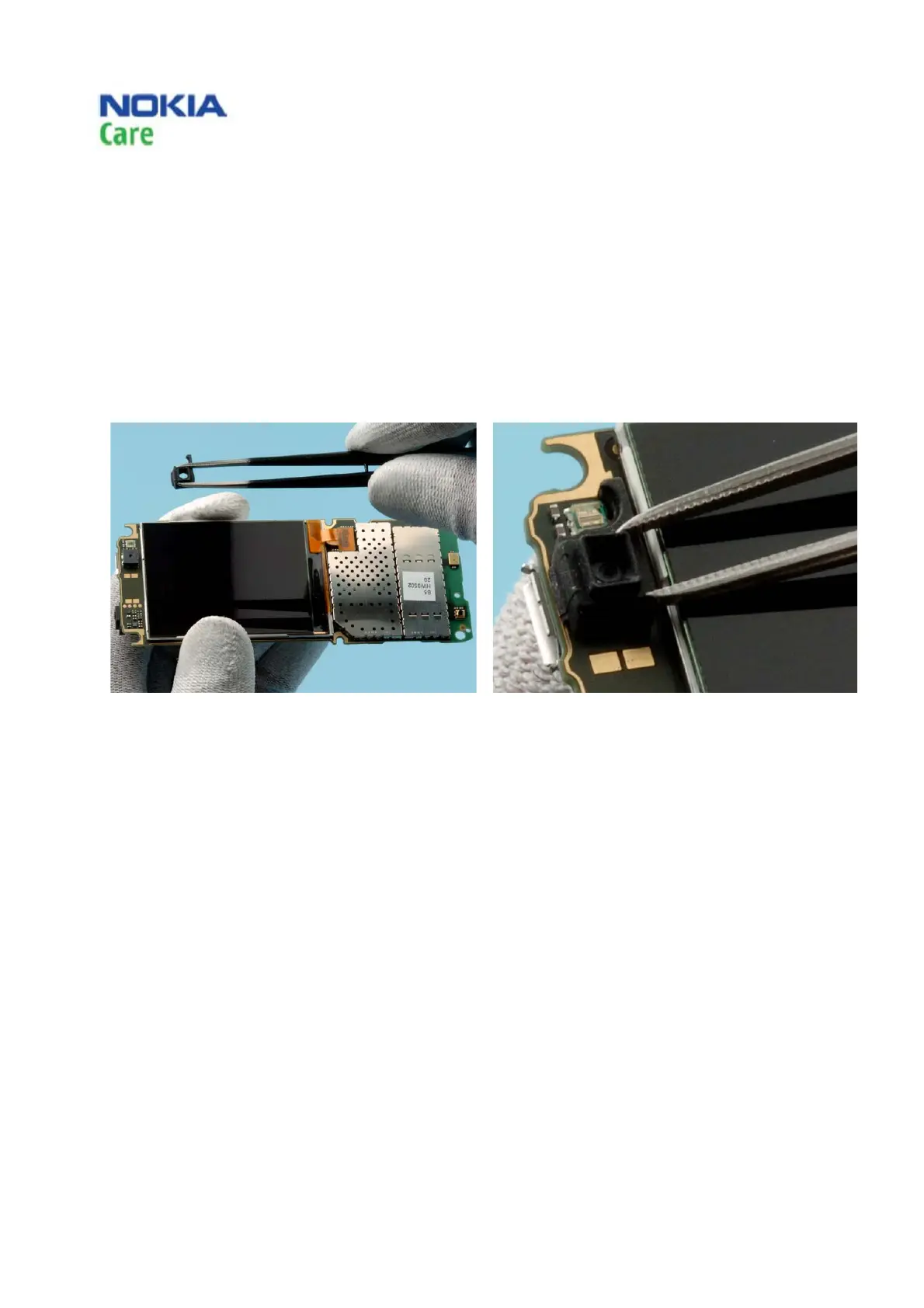

Assemble the 2
ND
CAMERA BOOT on top of the
CAMERA before assembling the UI SHIELD.
This is the position of the 2
ND
CAMERA BOOT in
place.
