11.4 Assembling the UI SHIELD
1
2

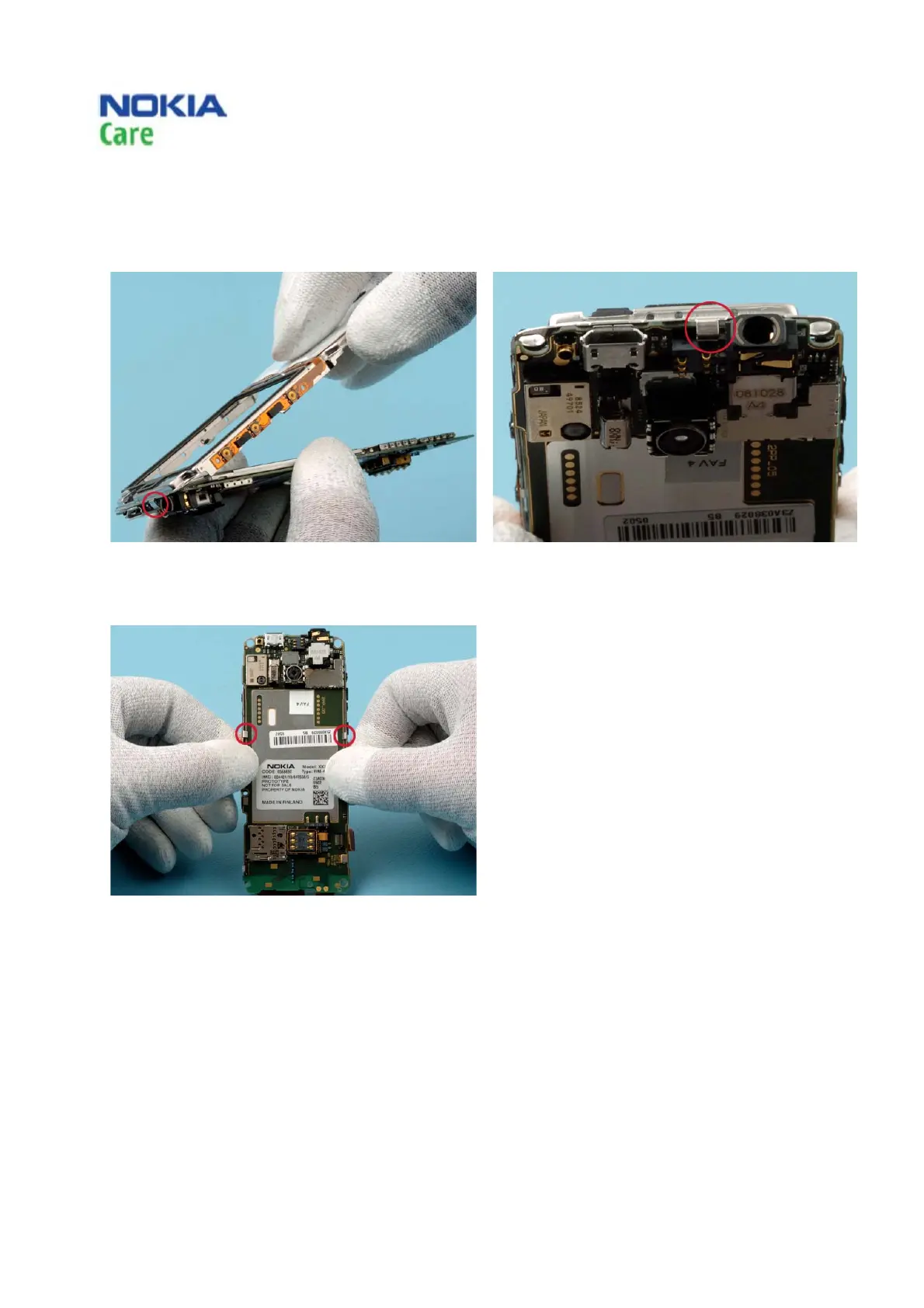

Assemble the UI SHIELD first from the top. Make
sure the upper clip goes under the assembly.
This is the position of the upper clip in place.
3
Also close the side clips of the UI SHIELD.
