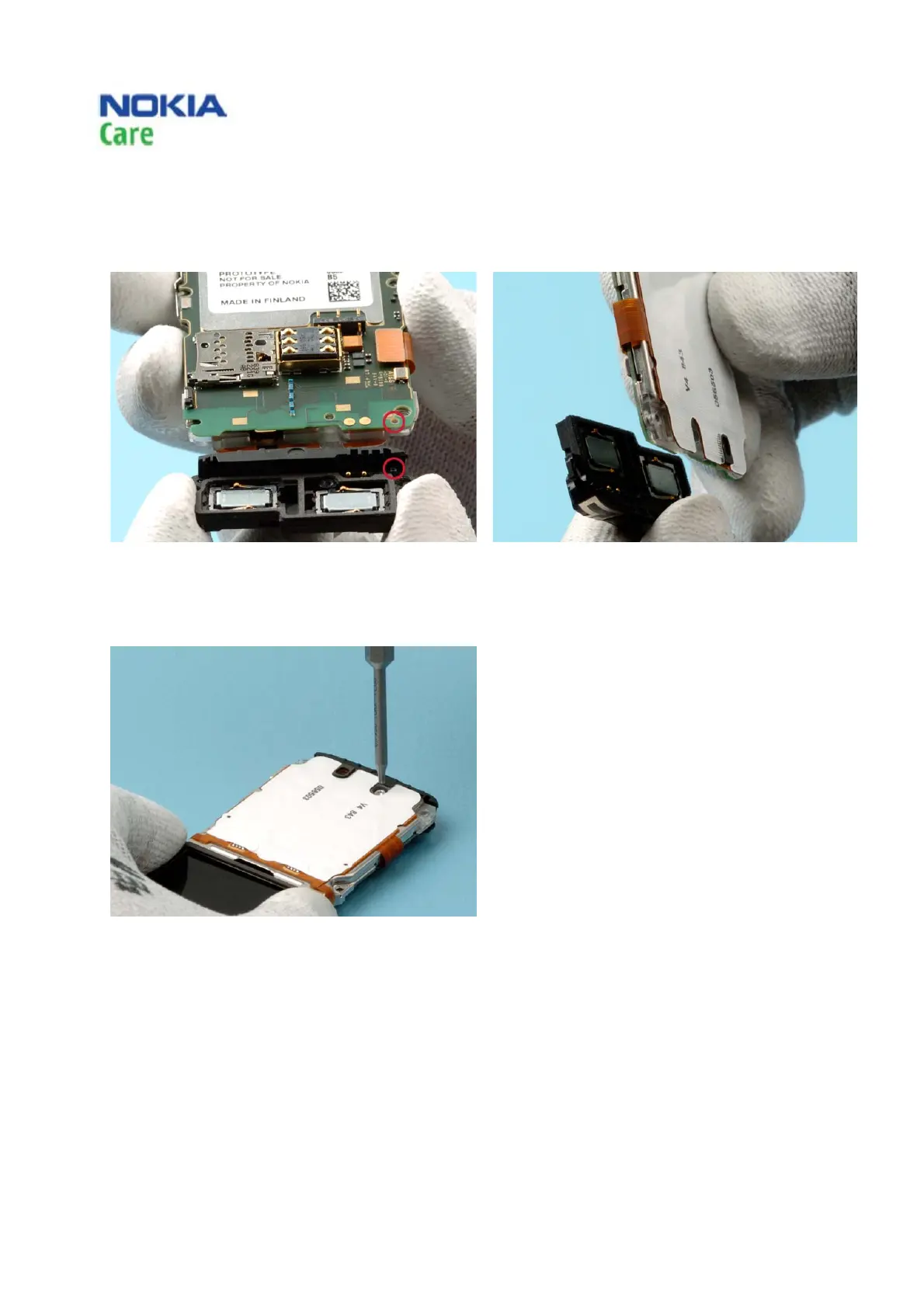

11.6 Assembling the antenna
1
2
Use the guiding pin in the ANTENNA MODULE and
the hole in the PWB when assembling the
ANTENNA MODULE.
Place the ANTENNA MODULE and PWB against
each other.
3
Tighten the screw to the torque of 13 Ncm.
