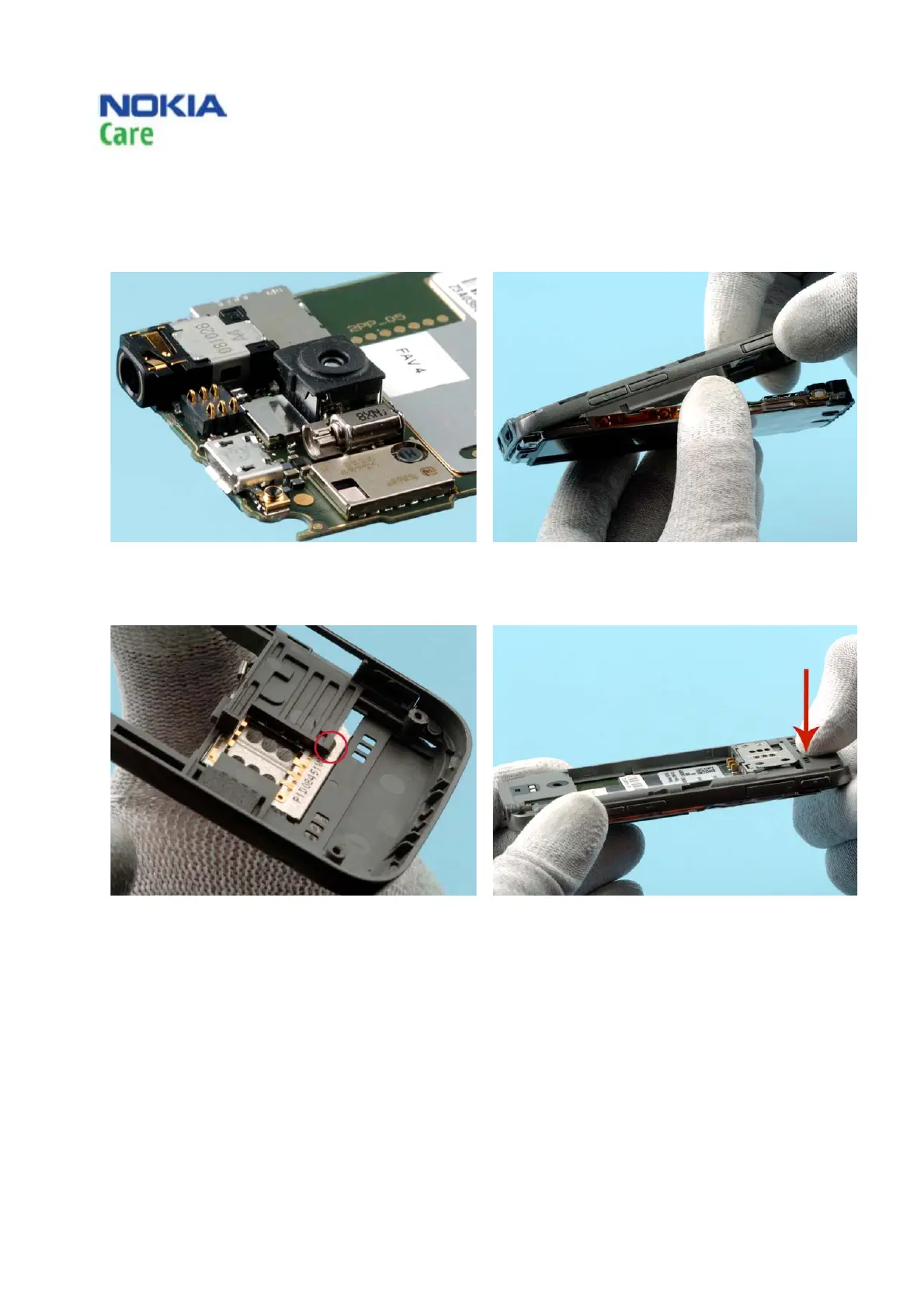

11.7 Assembling the C-COVER
1
2
When assembling the C-COVER, check that the
CAMERA BOOT is in the correct position.
Start assembling the C-COVER from the audio
connector.
3
4
Note that the C-COVER has a clip that you need to press in place from the top of the left speaker.
