5630 XpressMusic RM-431, RM-432
Service Manual Level 1&2
28 CONFIDENTIAL
11.8 Assembling the A-COVER
1
2

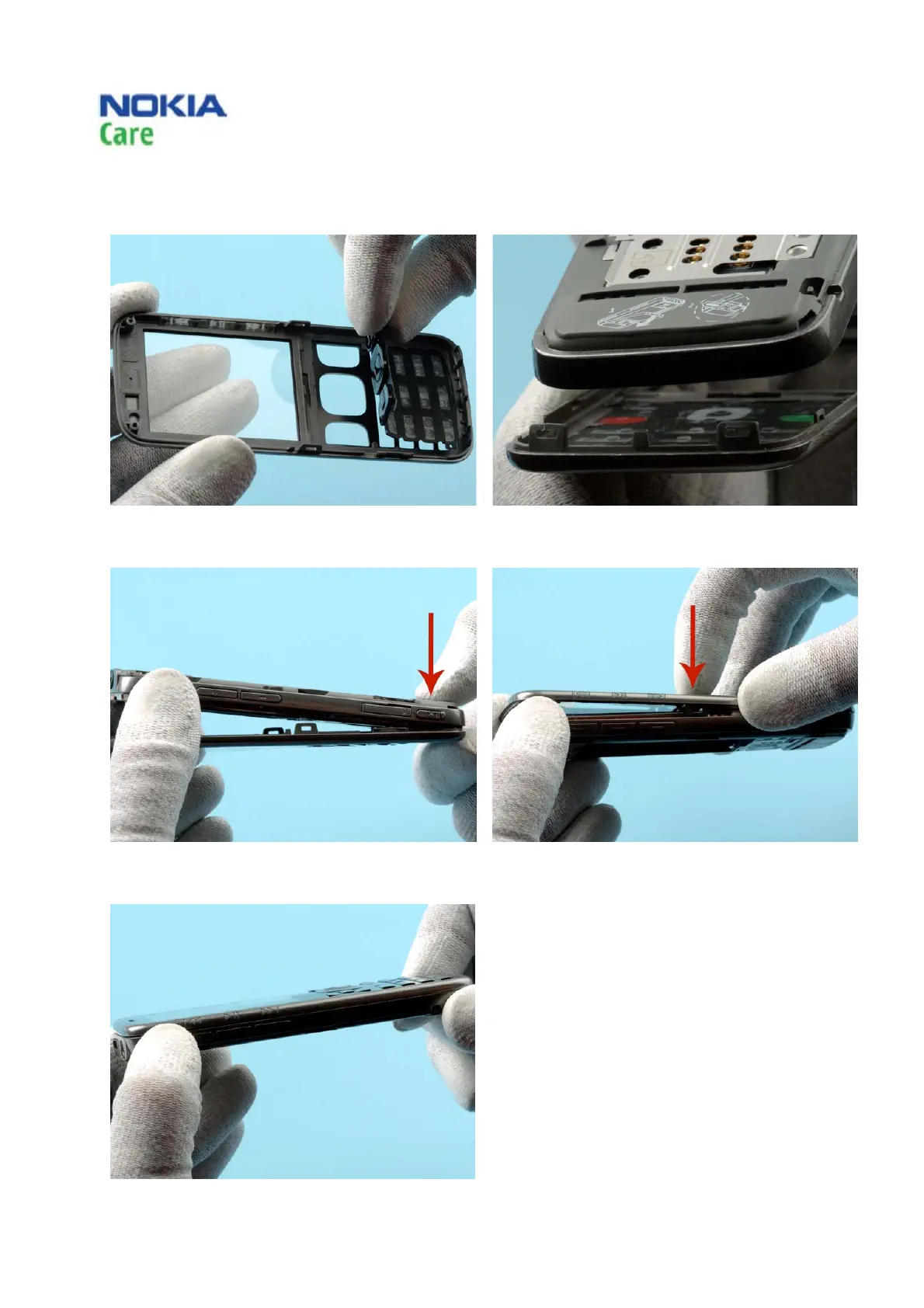

Drop the keymat into the A-COVER.
First assemble the lower clips of the A-COVER.
3
4
Close the clips by pressing the cover down.
Then close the middle clip of the A-COVER.
5
Check that the A-COVER has been closed properly
before you tighten the screws.
