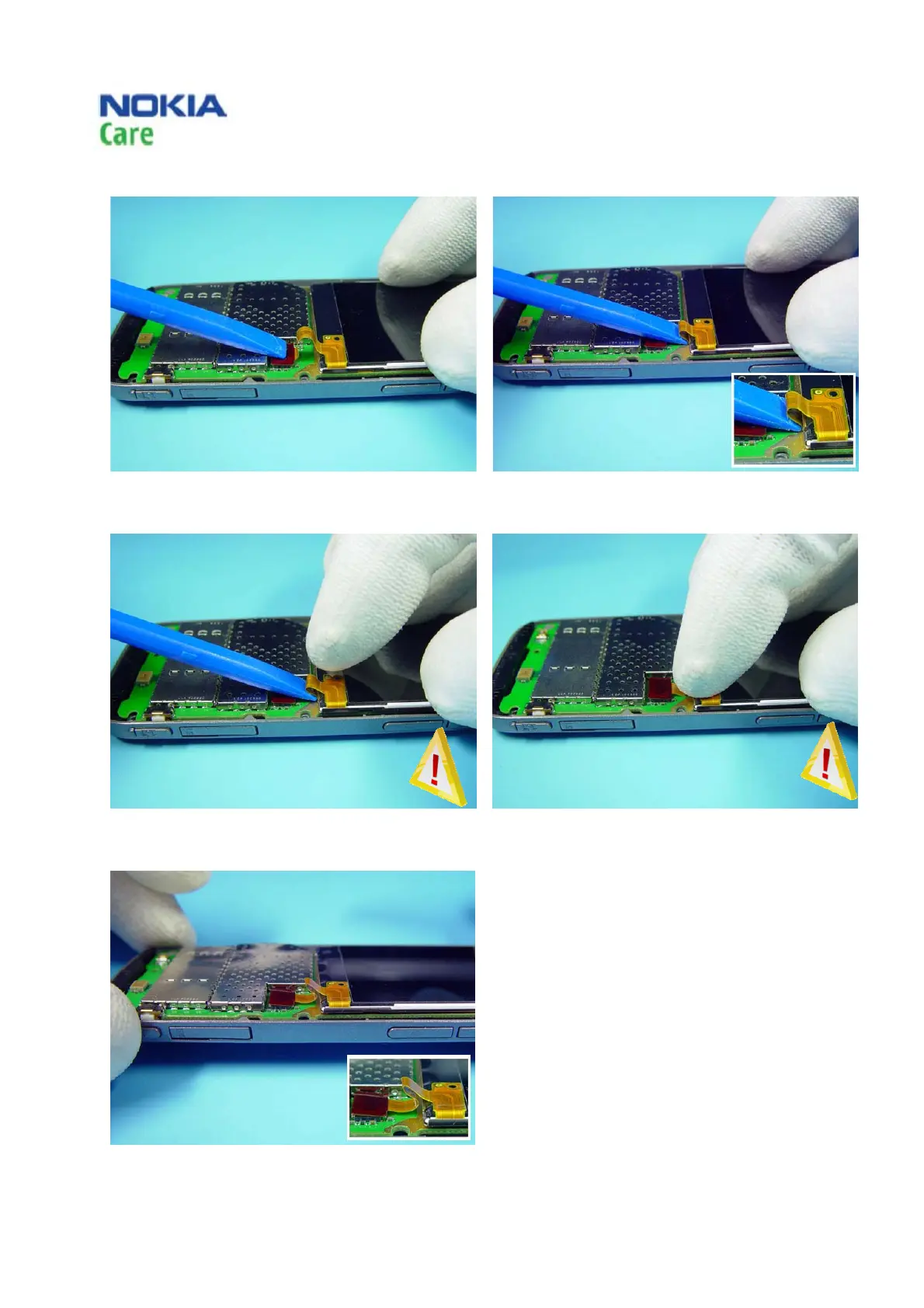

Use the SS-93 tool for pre-bending the LCD FLEX. Slide the SS-93 along the FLEX to the LCD.
8a
8b
Carefully press the LCD FLEX down. Do not press the LCD FLEX down too hard because
it can cause sharp curves and break it.
9
This is the position of the LCD FLEX after the pre-
bending procedure. Make sure the connector is
secure by pressing it.
