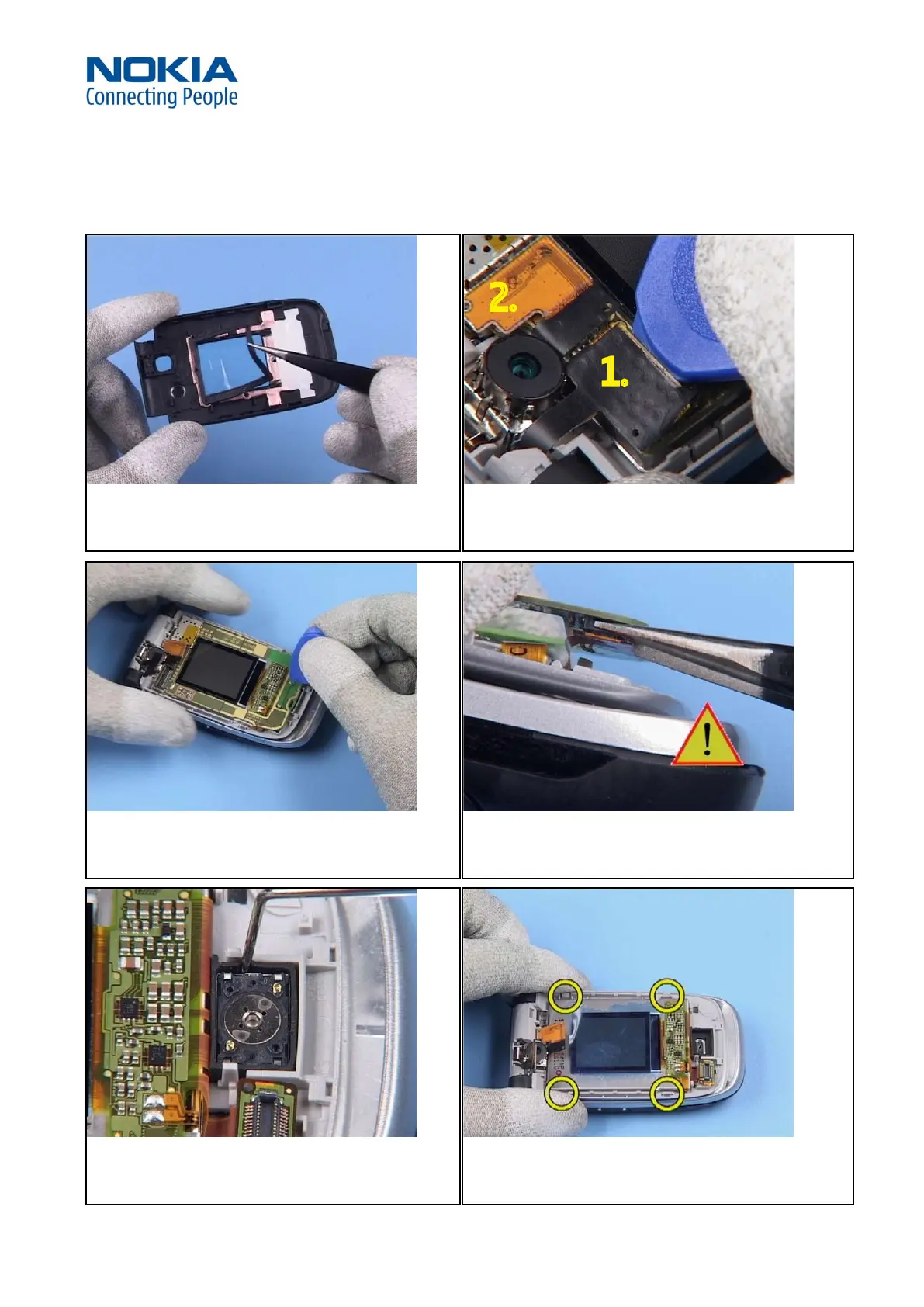

13. Take out the FRONT DISPLAY GASKET.
14. Carefully open the two ex connectors with the SRT-6.
15. Release the two hooks which hold the LCD PWB into place.
16. Lift the board only a bit and open the ex connector carefully
in the shown direction.
17. Ease out and remove the EARPIECE. Do not touch the spring
contacts.
18. Unlock the four clips with hold the NAPA DISPLAY MAIN.
1.
2.
