Nokia 6233 - Service Concept for RF;BB Testing and Tuning

Service concept for RF/BB testing and tuning

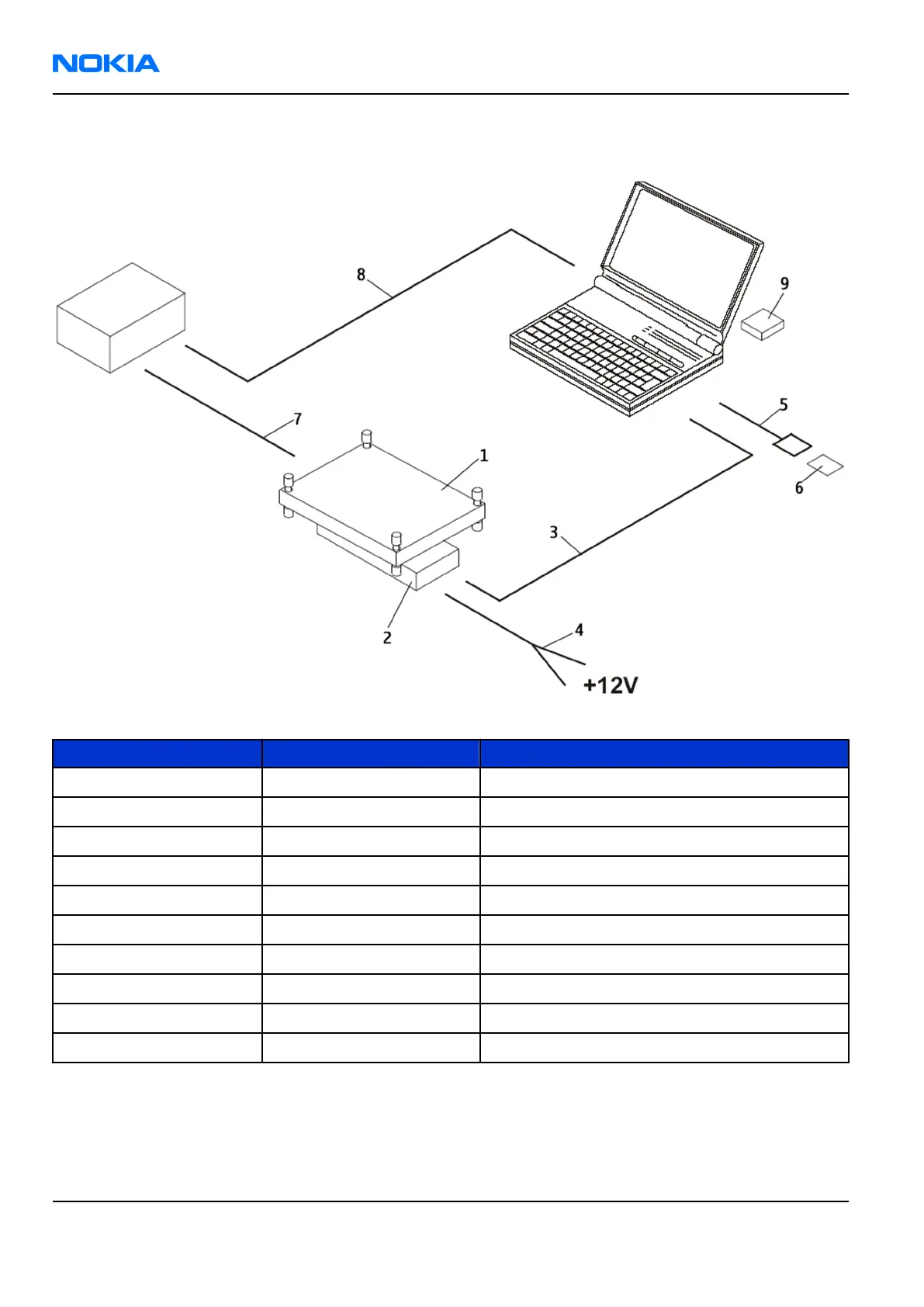

Figure 35 Service concept for RF/BB testing and tuning
Item Type Description
1 MJ-91 Module jig
2 CU-4 Control unit
3 Standard USB cable
4 PCS-1 DC power cable
5 Standard USB cable + smart card reader
6 SX-4 Smart card
7 XRS-6 RF cable
8 GPIB control cable
9 PKD-1 SW security device
10 RF shield box
Note: Item 10 not shown in the picture.
RM-123; RM-145
Nokia Customer Care Service Tools and Service Concepts
Page 4 –18 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.
