Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
13.Apr.2007
17
Service Manual 6290 RM-176 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(45)

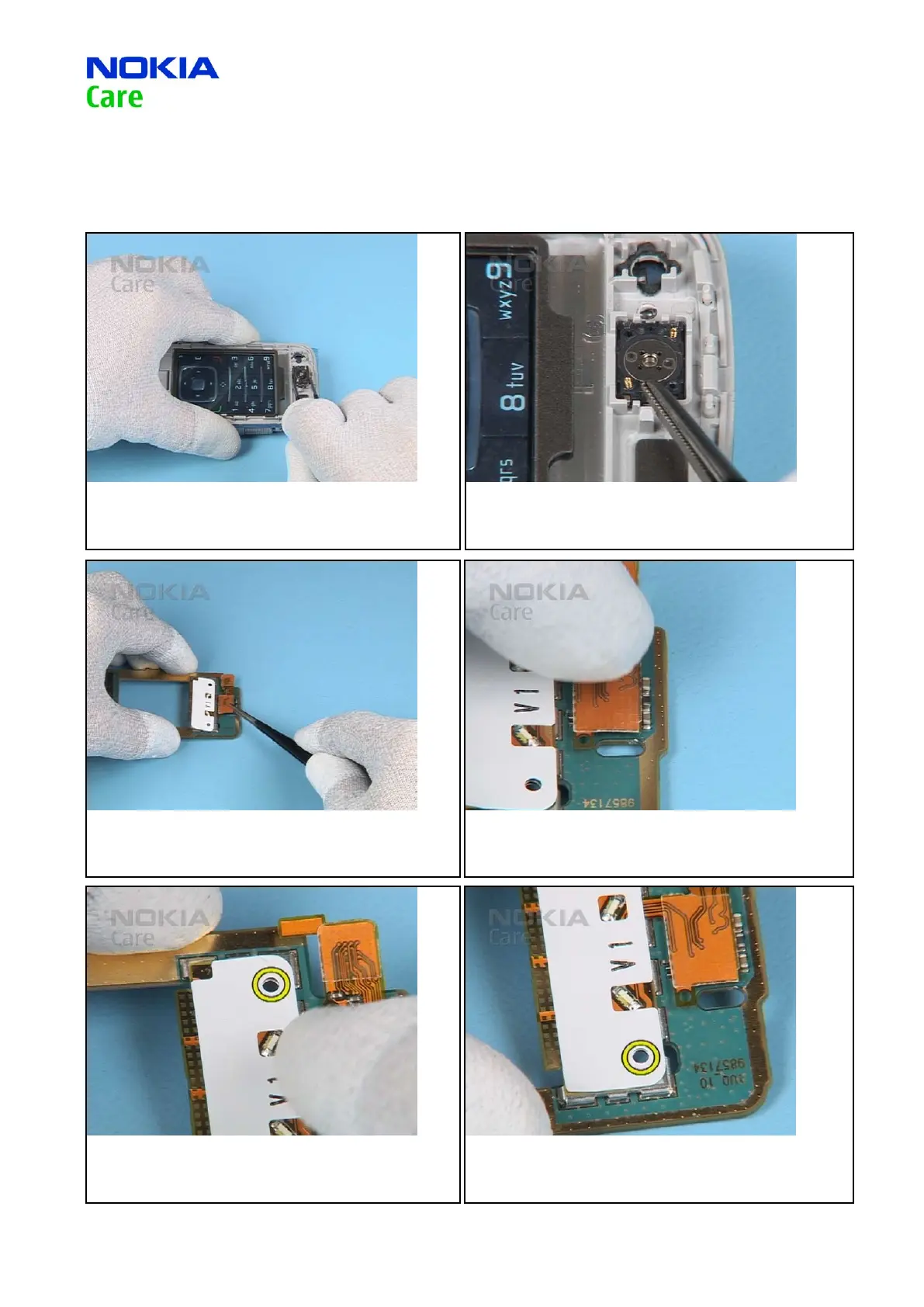

UPPER BLOCK ASSEMBLY 10.
1. Place the EARPIECE into the A-COVER UPPER…
2. …and gently push it into its place. Avoid bending the spring
contacts.
3. Align the new UI FLEX with the UI BOARD…
4. …and close the connector.
5. Note the right position of the UI FLEX…
6. …and press it carefully onto the metal shield.
