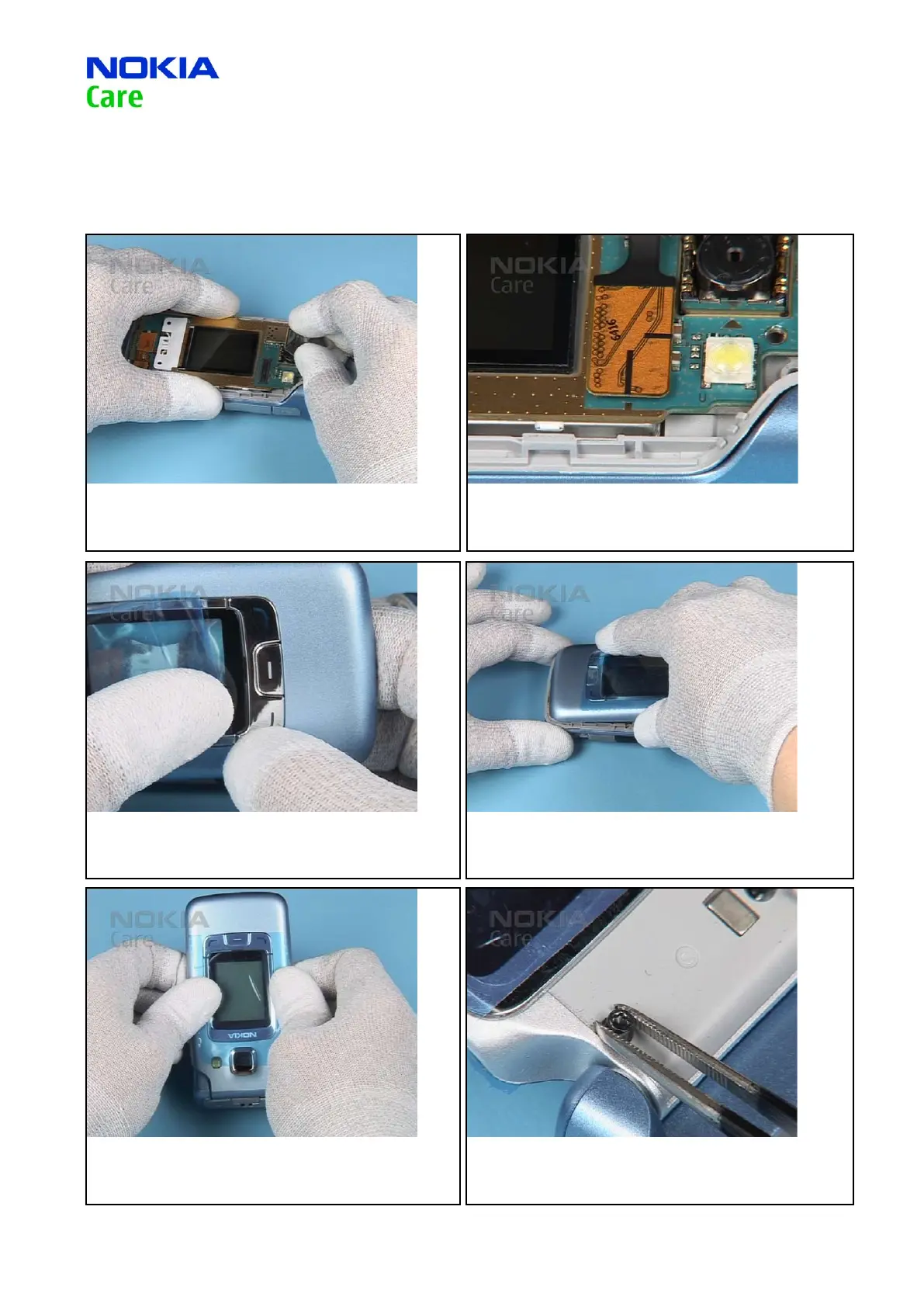

13. Secure the CAMERA MODULE by gently pressing it into place.
14. Close the PWB FLEX connector.
15. Fit the UI KEYMAT and close the snaps.
16. Fit the B-COVER UPPER...
17. and carefully squeeze the parts together.
18. Insert the screws.
