Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
13.Apr.2007
27
Service Manual 6290 RM-176 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(45)

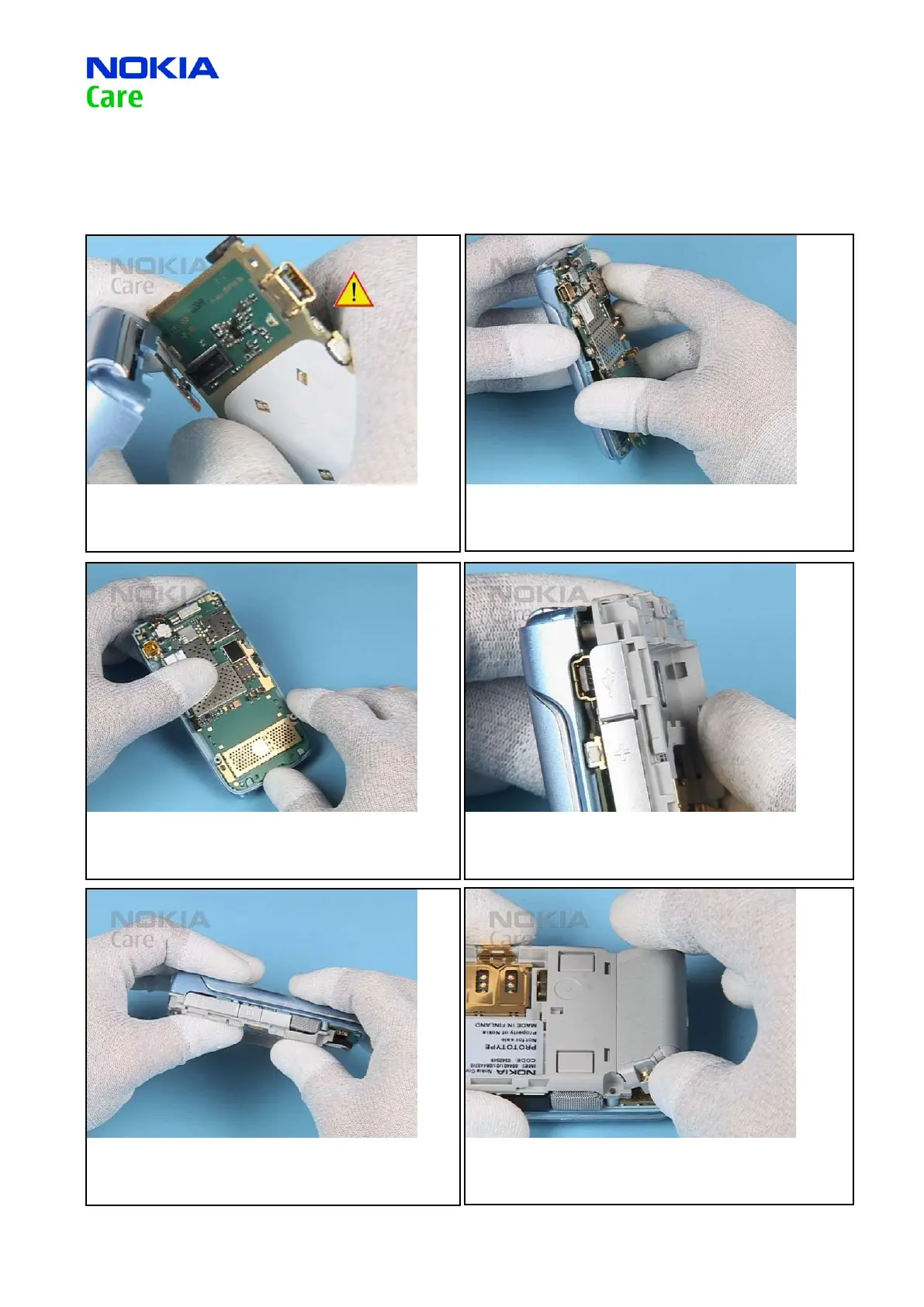

7. Gently connect the PWB FLEX to the ENGINE MODULE.
8. Place the ENGINE MODULE onto the A-COVER UPPER.
9. Note the right position of the guide pins.
10. Align the C-COVER ASSY with the A-COVER LOWER.
11. Secure the parts by carefully squeezing them together.
12. Fit the ANTENNA to the C-COVER ASSEMBLY…
