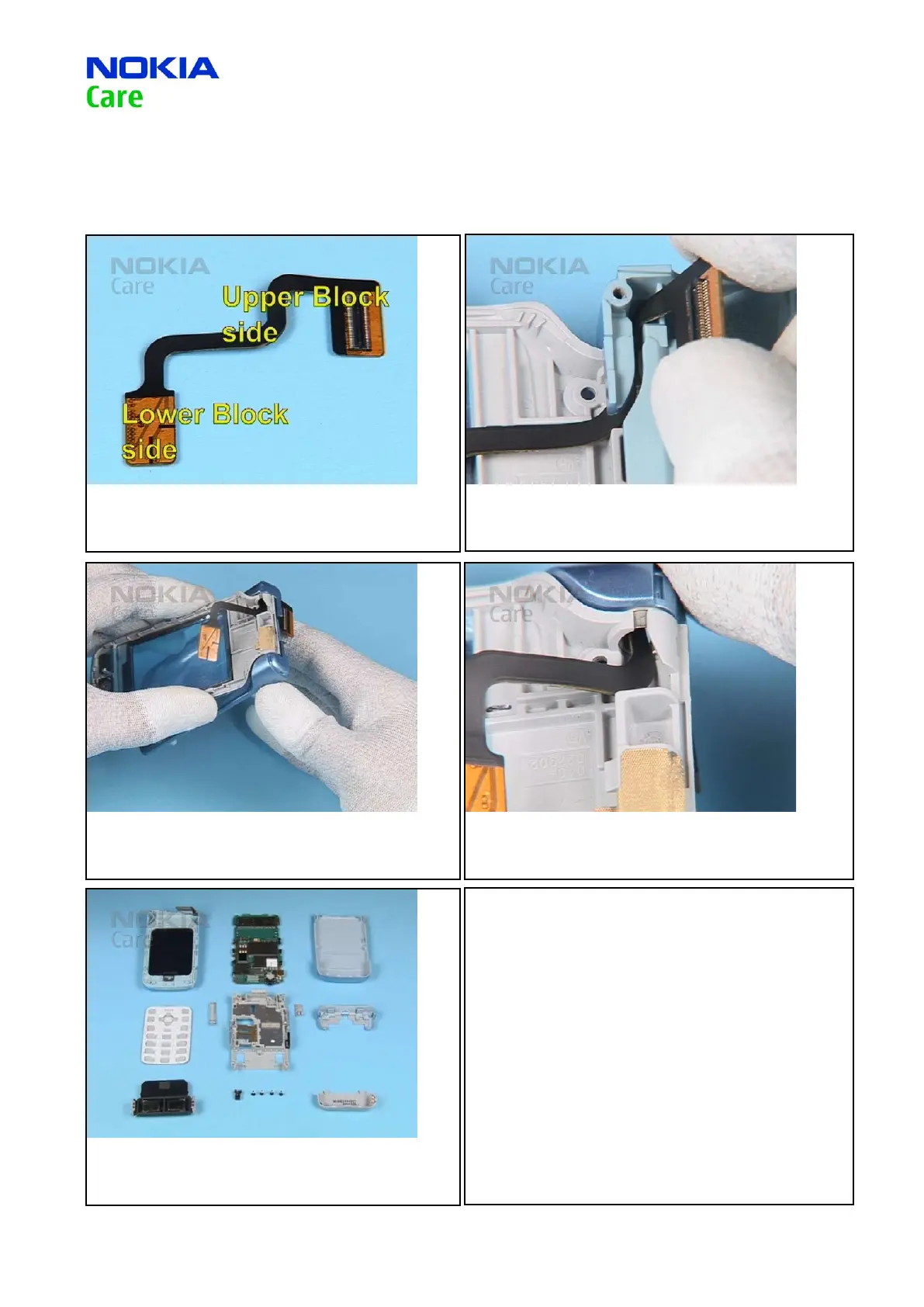

25. Note the right position of the PWB FLEX when assembling
the unit.
26. Carefully insert the PWB FLEX into the HINGE slot.
27. Close the A-COVER ASSY…
28. …and check if the PWB ex is positioned correctly.
29. The disassembly procedure is now completed.
