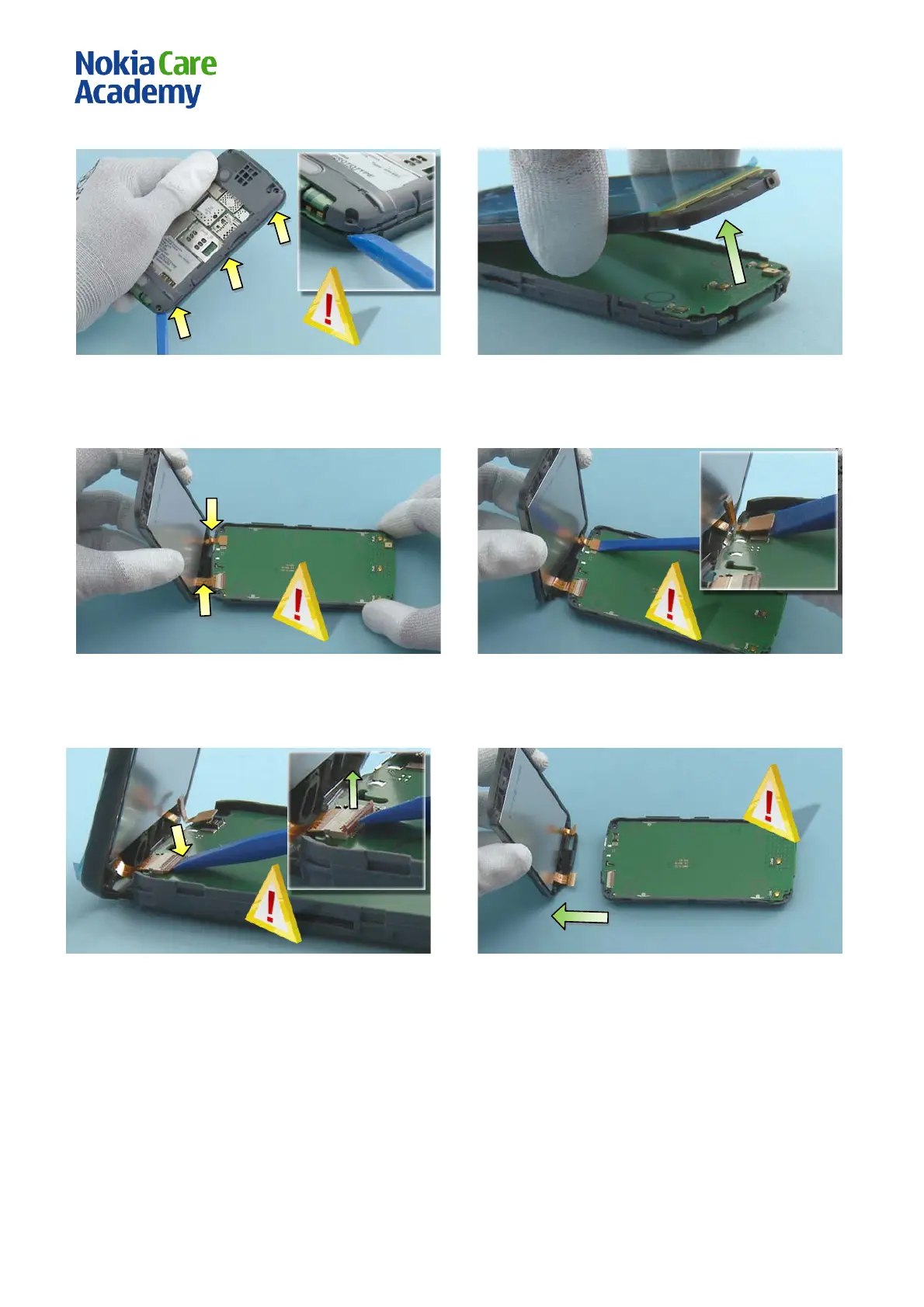

13. Detach also the clips on the other side, as shown.
14. Lift the FRONT COVER ASSEMBLY from the bottom
side as shown.
15. Hold the FRONT COVER ASSEMBLY as shown. Be
careful not to damage the flexes.
16. Disconnect the TOUCH PANEL connector with the
SS-93. Be careful not to damage any nearby
components.
17. Open the lock of the DISPLAY connector with the
SS-93 as shown. Be careful not to damage any
nearby components.
18. Carefully move the FRONT COVER ASSEMBLY away
from the CHASSIS so tha t the DI SPLAY connector is
disconnected. Be careful not to damage the flex.

Nokia C5-03 Specifications

General

Display	TFT resistive touchscreen, 16M colors
Resolution	360 x 640 pixels, 3.2 inches (~229 ppi pixel density)
Operating System	Symbian OS v9.4, Series 60 rel. 5
Processor	600 MHz ARM 11
RAM	128 MB
Main Camera	5 MP
Video	480p@15fps
Battery	Removable Li-Ion 1000 mAh battery (BL-4U)
Talk time	Up to 11 h 30 min (2G) / Up to 4 h 30 min (3G)
Music play	Up to 35 h
Dimensions	105.8 x 51 x 13.8 mm, 65 cc (4.17 x 2.01 x 0.54 in)
Weight	93 g (3.28 oz)
Network	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 32
EDGE	Class 32
Announced	2010, October
Status	Discontinued
SIM	Mini-SIM
GPU	No
Card slot	microSD, up to 16 GB (dedicated slot), 2 GB included
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g
Bluetooth	2.0, A2DP
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Sensors	Accelerometer, proximity
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Internal Storage	40 MB
Stand-by	Up to 576 h (3G)
3G bands	HSDPA 900 / 2100
GPS	Yes, with A-GPS
Colors	Black, Pink
