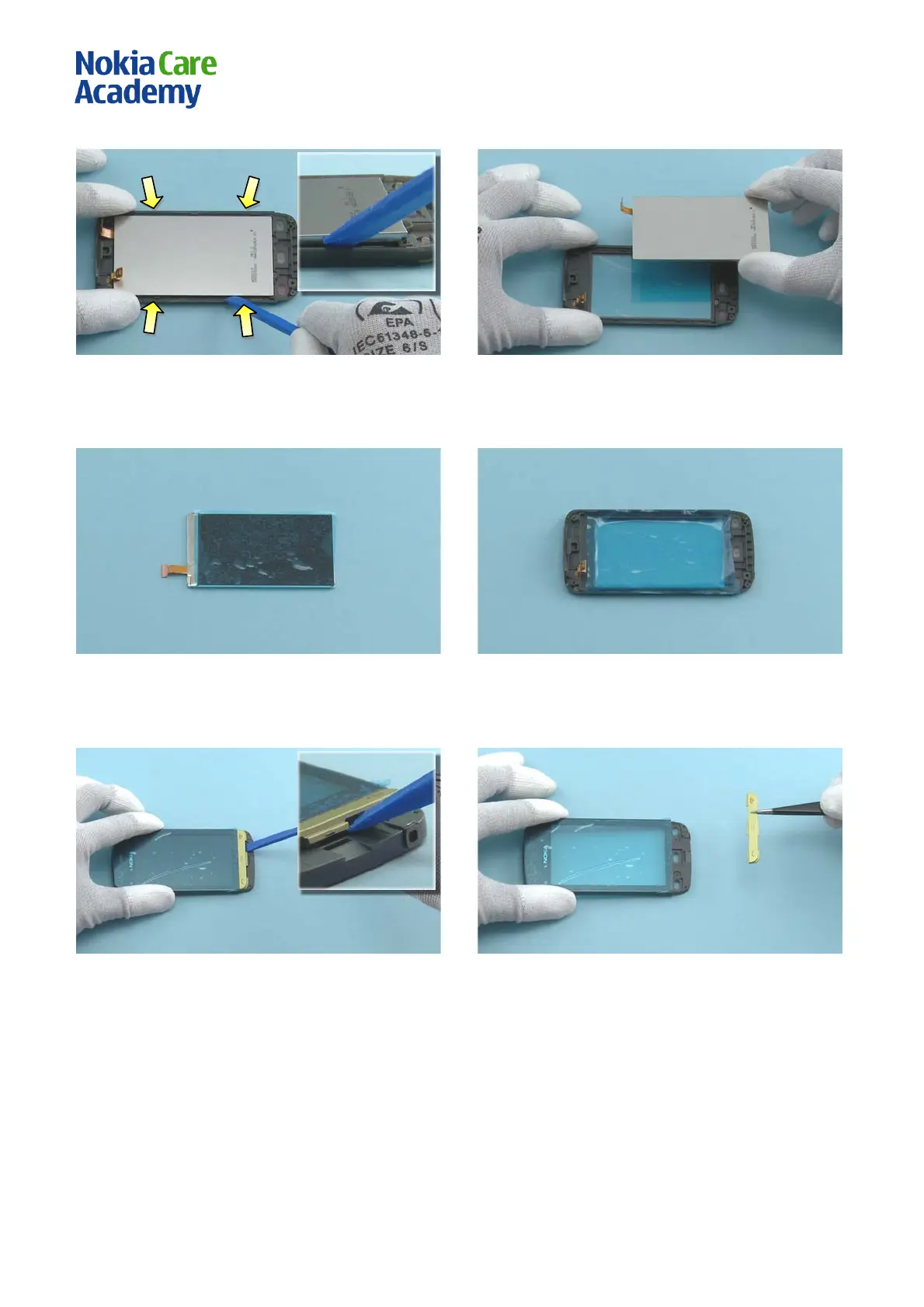

19. Use the SS-93 to carefully detach the DI SPLAY
from all sides.
20. Lif t the DI SPLAY away from the FRONT COVER
ASSEMBLY.
21. Protect the DISPLAY with protective film.
22. Protect also the TOUCH PANEL from the inside
with protec tive film.
23. Use the SS-93 to detach the KEY MAT. 24. Remove the KEYMAT with the tweezers.
