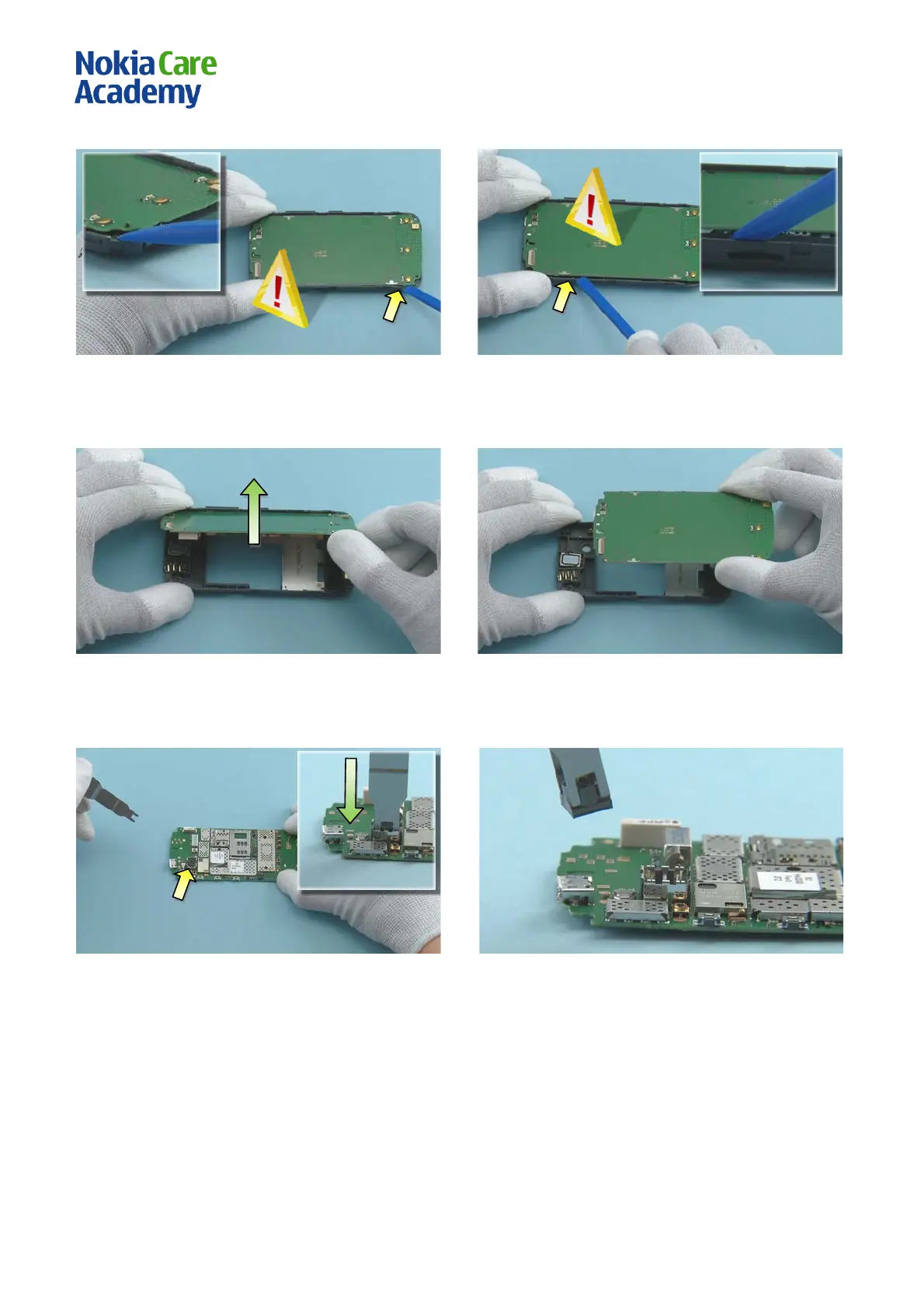

25. Use the SS-93 to open the first ENGI NE BOARD
clip. Be careful not to damage any nearby
components.
26. Repeat the procedure on the second clip.
27. Lift the ENGI NE BOARD from the detached side to
protect the side keys.
28. Remove the ENGINE BOARD.
29. Position the SS-
88 camera removal tool on top of
the CAMERA and press it down.
30. Lift up the SS-88 with the CAMERA and remove
the CAMERA.
