Nokia DNT2Mi sp/mp User Manual

Using Q1 menus
DN01145897 © Nokia Corporation 107 (128)
Issue 2-0 en Nokia Proprietary and Confidential

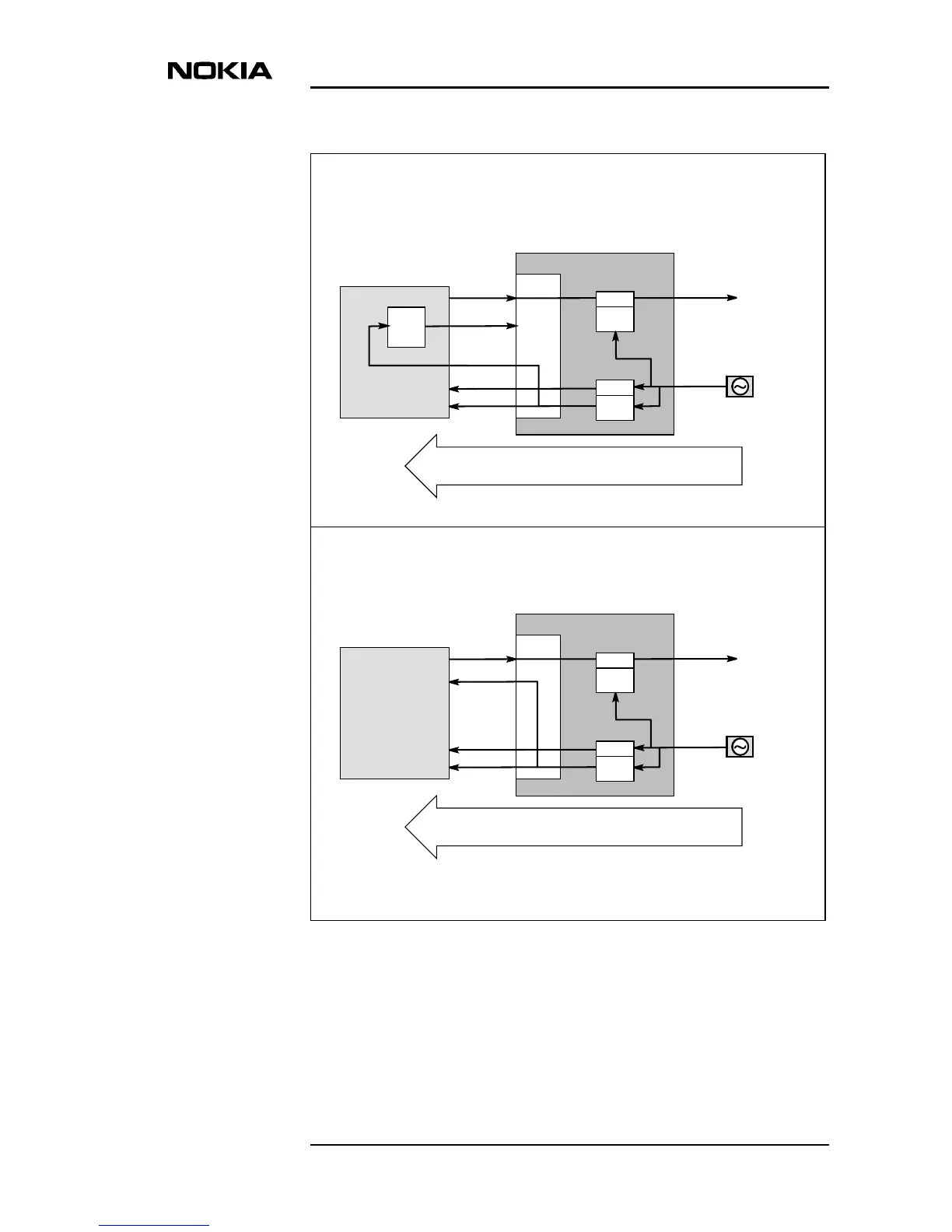

Figure 78. CT103 timing alternatives, line timing
Line SHDSL
114
115
113
Timing
DTE
DNT2Mi
CT103 timing by CT114, Line timing
104
V.xx
PLL
PLL
PLL
Tx
Rx
103
Line SHDSL
114
115
Timing
DTE
DNT2Mi
104
V.xx
PLL
PLL
Tx
Rx
103
CT103 timing by CT113, Line timing
