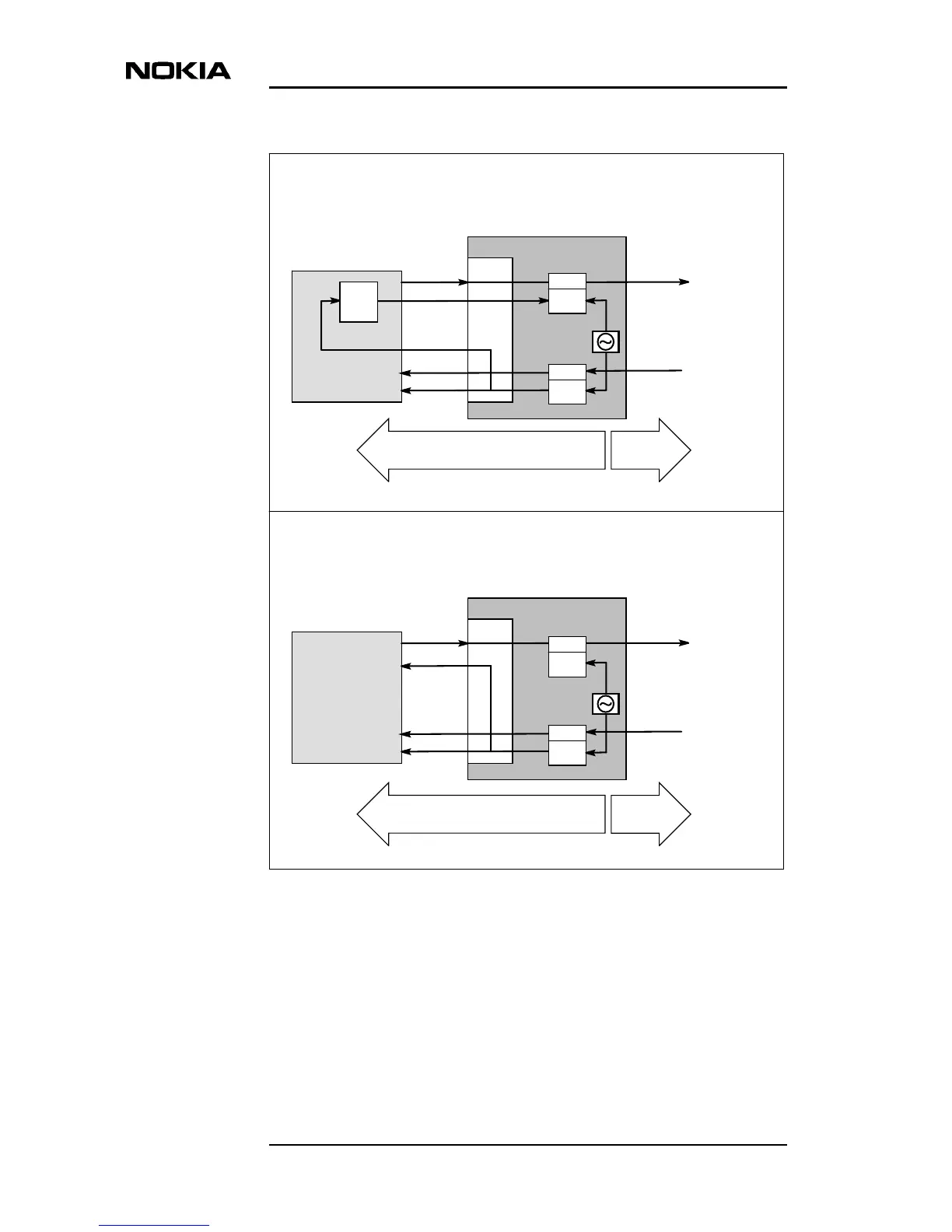

Figure 79. CT103 timing alternatives, internal timing
• DTE circuits (6,4, port #,3,3)
The contents of the DTE circuits menu depend on the type of the interface
unit installed in the port. If no interface has been connected, the default is
of V-type.
Line SHDSL
114
115
113
Timing
DTE
DNT2Mi
CT103 timing by CT114, Internal timing
104
V.xx
PLL
PLL
PLL
Tx
Rx
103
Line SHDSL
114
115
DTE
DNT2Mi
104
V.xx
PLL
PLL
Tx
Rx
103
CT103 timing by CT113, Internal timing
Timing
Timing
Timing
