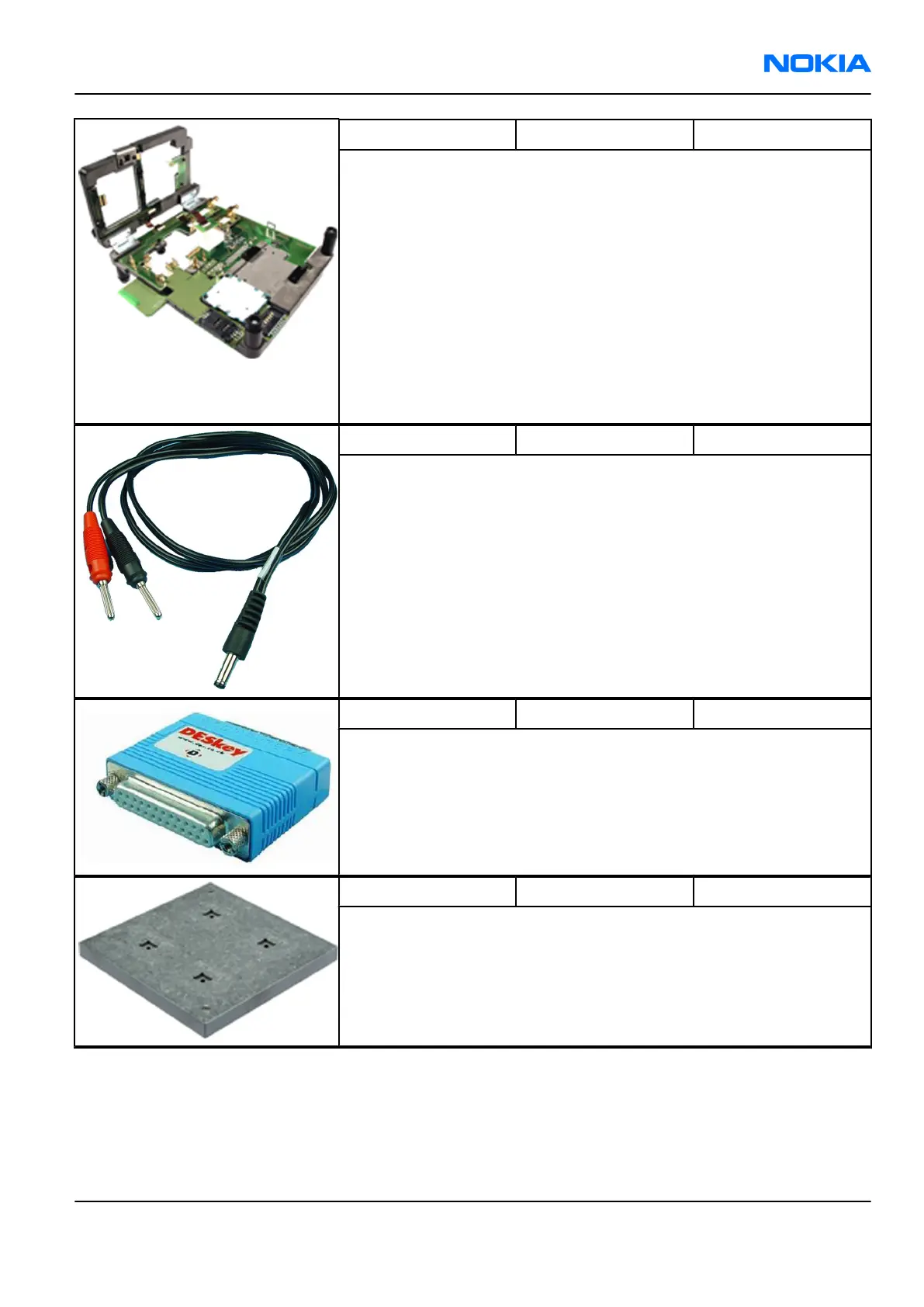

MJ-70 Module jig
Module jig MJ-70 is designed for engine testing. It can be used for
flashing and RF, battery and system testing.
Module jig MJ-70 main functions:
• CU-4 interface adapter to phone
• USB / FBUS multiplexed interface to phone
• UI Interface to phone
• STI and XTI test interface
• GSM RF-interface
All functions, except USB / FBUS multiplexing, are performed in CU-4.
For instance, adjusting calibration voltages and current, and all
protections for over current, over voltage and voltage polarity.
PCS-1 Power cable
The PCS-1 power cable (DC) is used with a docking station, a module
jig or a control unit to supply a controlled operating voltage.
PKD-1 SW security device
SW security device is a piece of hardware enabling the use of the
service software when connected to the parallel (LPT) port of the PC.
Without the device, it is not possible to use the service software.
Printer or any such device can be connected to the PC through the
device if needed.
RJ-104 BTHFM rework jig
RJ-104 is a rework jig used when servicing the BTHFM module. It is
used together with rework stencil ST-37.
RM-180
Service Tools and Service Concepts Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 4 –9
Copyright © 2006 Nokia. All rights reserved.
