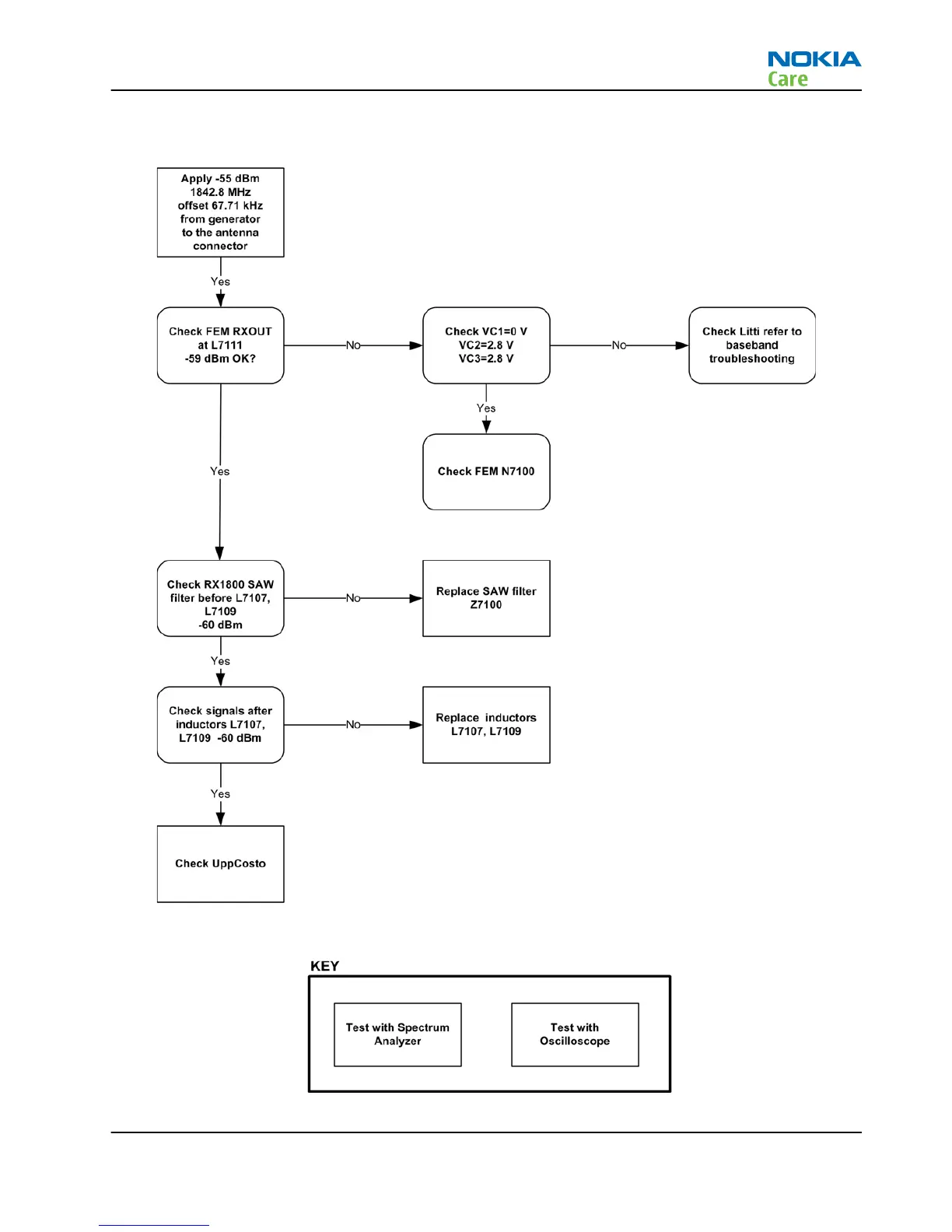

Troubleshooting diagram for GSM 1800 receiver
Figure 38 GSM 1800 Receiver troubleshooting
RM-305; RM-306
RF troubleshooting
Issue 2 COMPANY CONFIDENTIAL Page 5 –13
Copyright © 2007 Nokia. All rights reserved.
