2505 (RM-307)
Nokia Customer Care

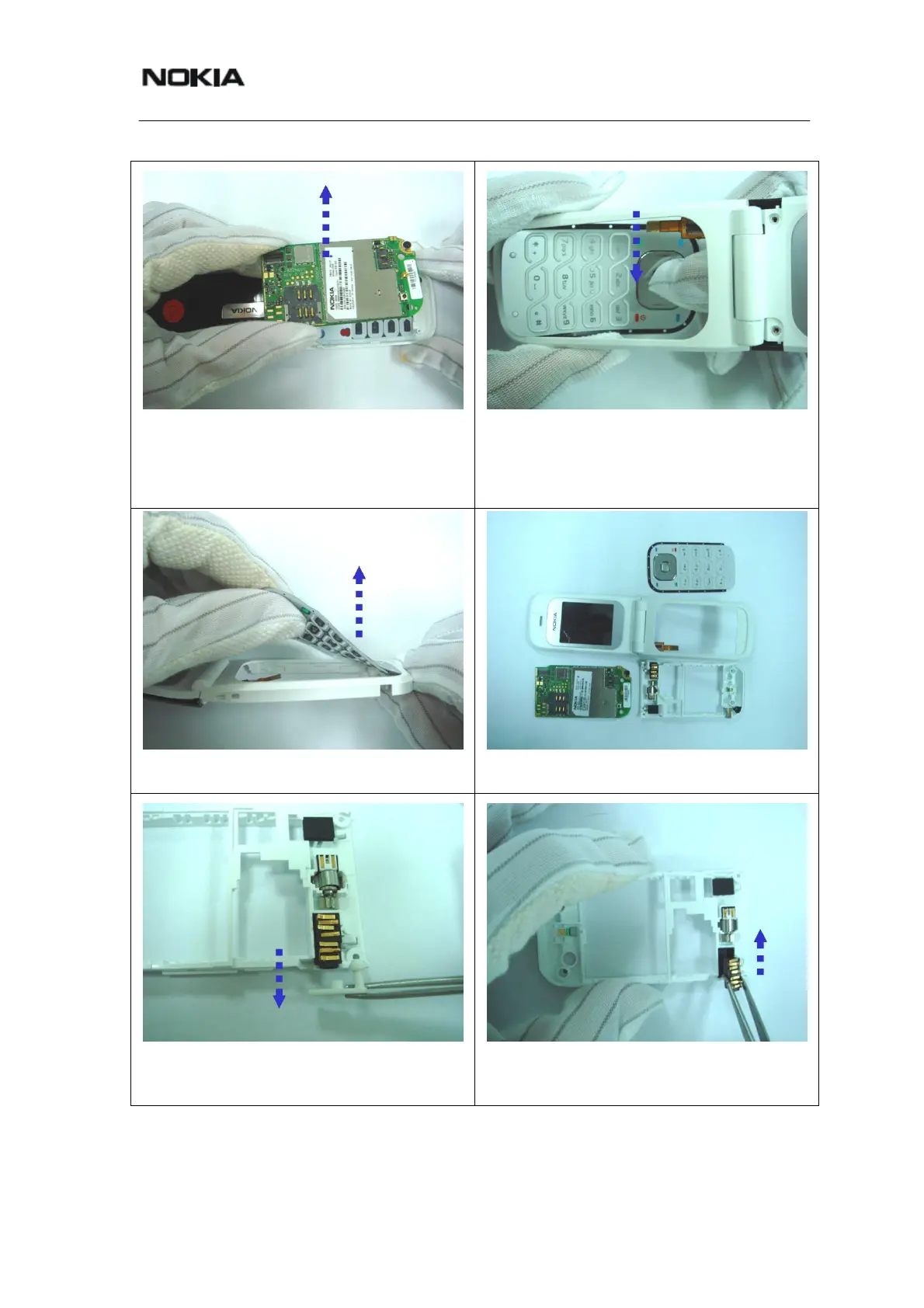

13. Release two hooks of C-Cover and
carefully grip both sides of the mobile terminal
and gently pulls out the Engine Module
vertically, so as to free it from C-Cover.
14.
Press Keymat downward.
15. Pull Keymat upward to remove it. 16. Piece parts list.
17. Use tweezers to clip Earphone Jack
Rubber and pull out it from the D-Cover.
18. Use tweezers to clip Earphone and pull
upward to remove it from the D-Cover.
