Troubleshooting diagram for GSM850 transmitter
Troubleshooting flow

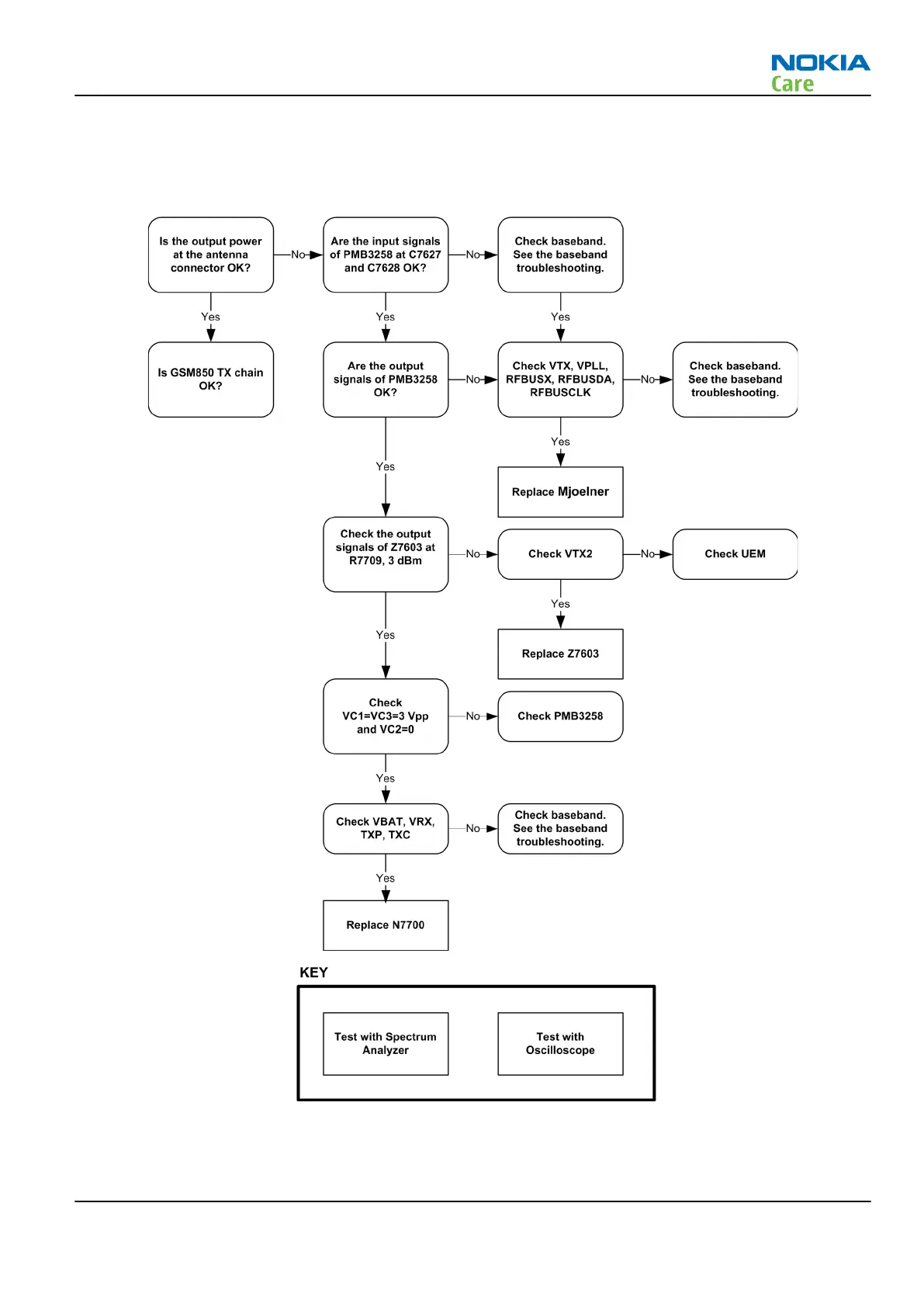

Figure 66 GSM850 transmitter troubleshooting
RM-362; RM-363
RF Troubleshooting Instructions
Issue 1 COMPANY CONFIDENTIAL Page 4 –37
Copyright © 2008 Nokia. All rights reserved.
