Troubleshooting diagram for FM radio
Troubleshooting flow

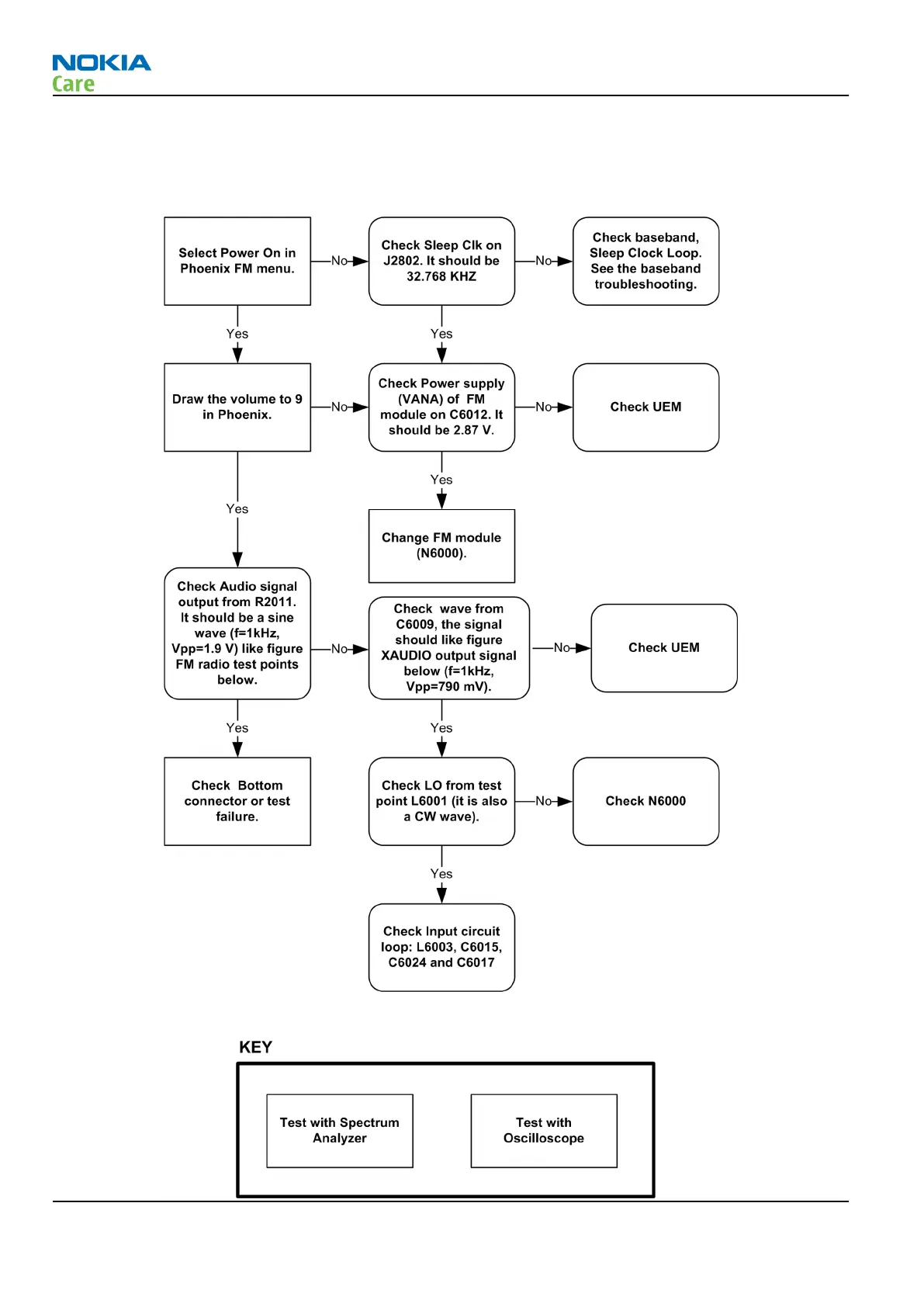

Figure 83 FM circuit troubleshooting diagram
RM-362; RM-363
RF Troubleshooting Instructions
Page 4 –50 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
