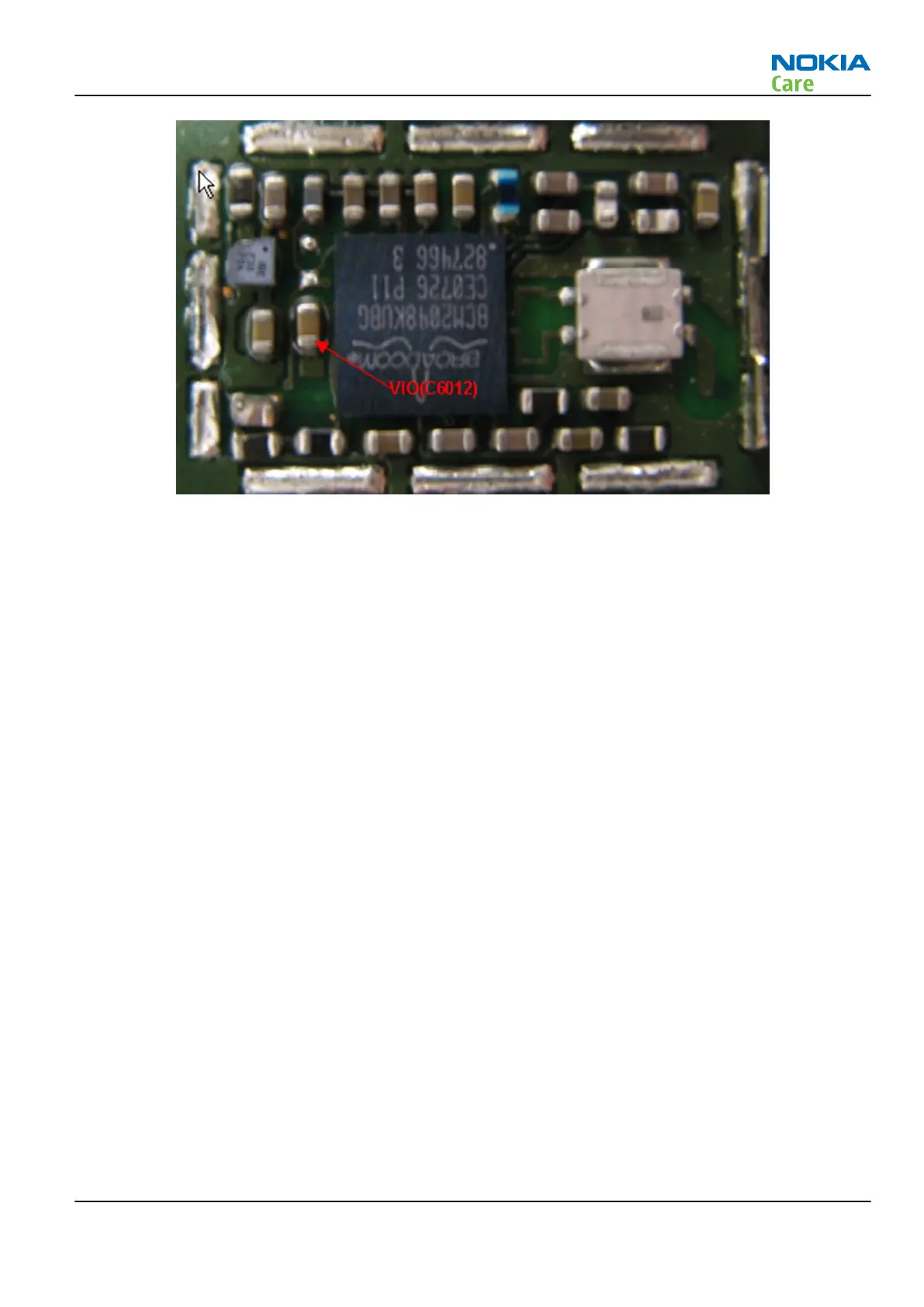

Figure 32 Supply point at BT & FM IC (N6000)

Auto tuning

This phone can be tuned automatically.

Autotune is designed to align the phone's RF part easier and faster. It performs calibrations, tunings and

measurements of RX and TX. The results are displayed and logged in a result file, if initiated.

Hardware set up

Hardware requirements for auto tuning:

• PC (Windows 2000/NT) with GPIB card

• Power supply

• Product specific module jig

• Cables: 3 (alt.1) RF cable, 1 GPIB cable and DAU-9S

• Signal analyser (TX), signal generator (RX) and RF-splitter

one device including all.

Phoenix preparations

Copy the two phone specific ini-files, for example

rm_13_tunings.ini

and

autotune_RM-13.ini,

to a phone

specific folder, for example

\Phoenix\products\RM-13\

Auto tuning procedure

1 Make sure the phone (in the jig) is connected to the equipment. Else, some menus will not be shown in

Phoenix.

2 The first time you are using automatic tuning on this phone model, on this computer, you will have to

Set loss

for cables and jigs.

3 To go to autotune, select

Tuning (Alt-U)

Auto-Tune (Alt-A)

from the menu.

4 If you need more assistance, please refer to the Phoenix

Help

RM-362; RM-363

RF Troubleshooting Instructions
