Nokia RM-362 - GSM850 TX Output Power

GSM850 TX output power
Measure the output power of the phone; it should be about 32.5 dBm. Remember the cable loss is about 0.3
dB.

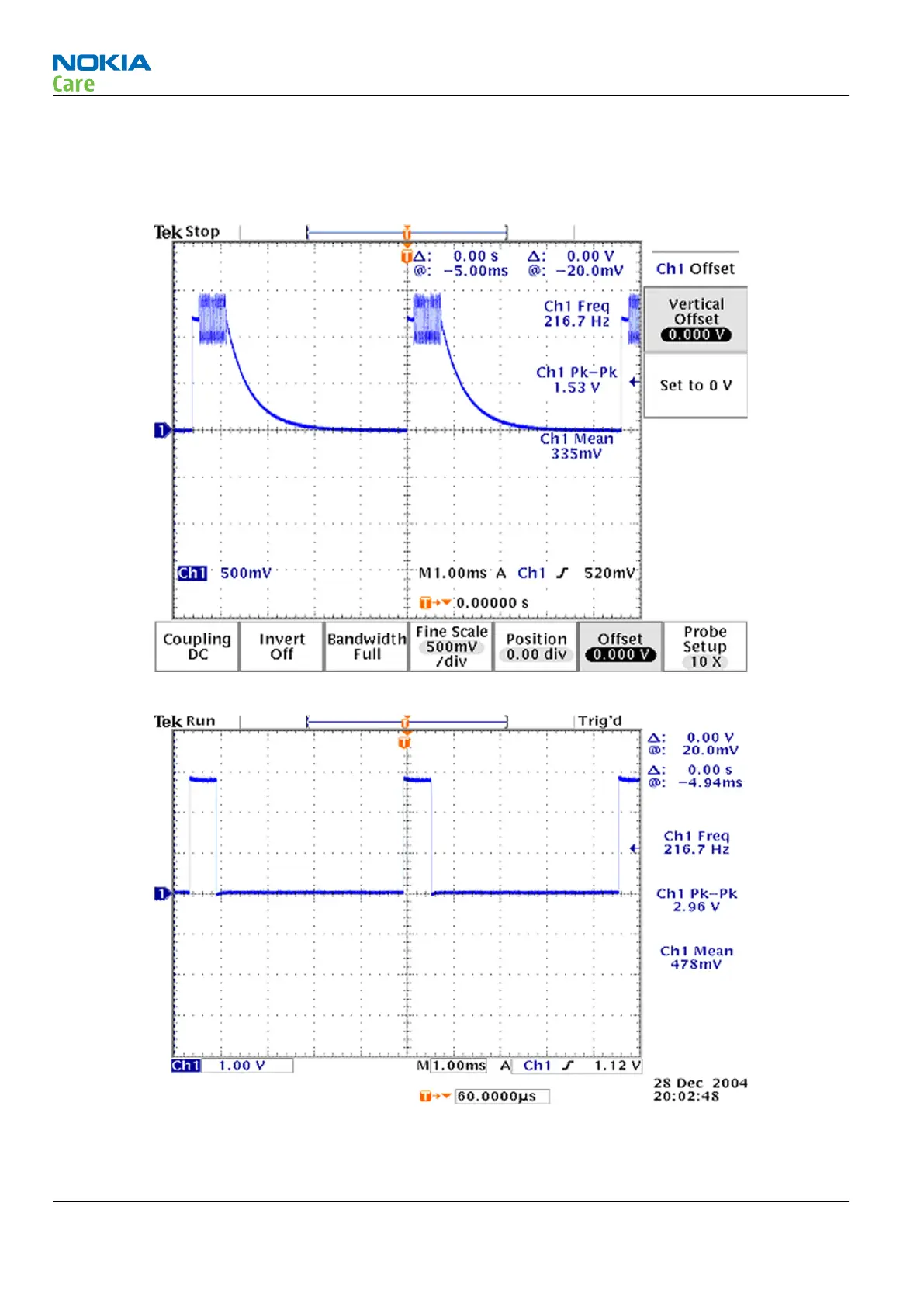

Figure 67 TX I/O signal
Figure 68 VC1, VC3 signal
RM-362; RM-363
RF Troubleshooting Instructions
