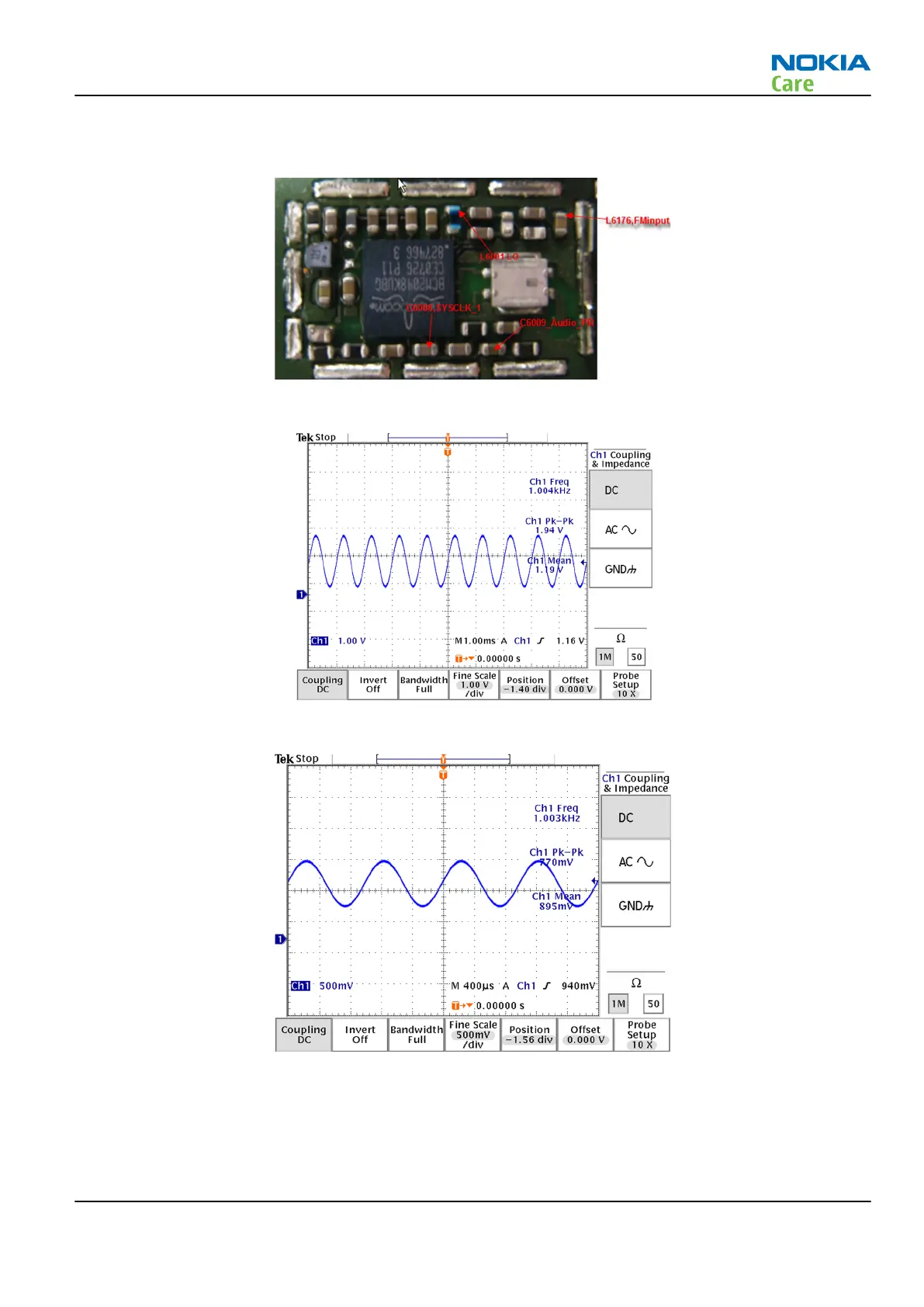

Bluetooth and FM radio test points
Figure 84 Bluetooth and FM radio test points
Figure 85 XAUDIO output signal
Figure 86 FM module output signal
Introduction to Bluetooth troubleshooting
There are two main Bluetooth (BT) problems that can occur:
RM-362; RM-363
RF Troubleshooting Instructions
