Step 1a: Static WAN IP Configuration

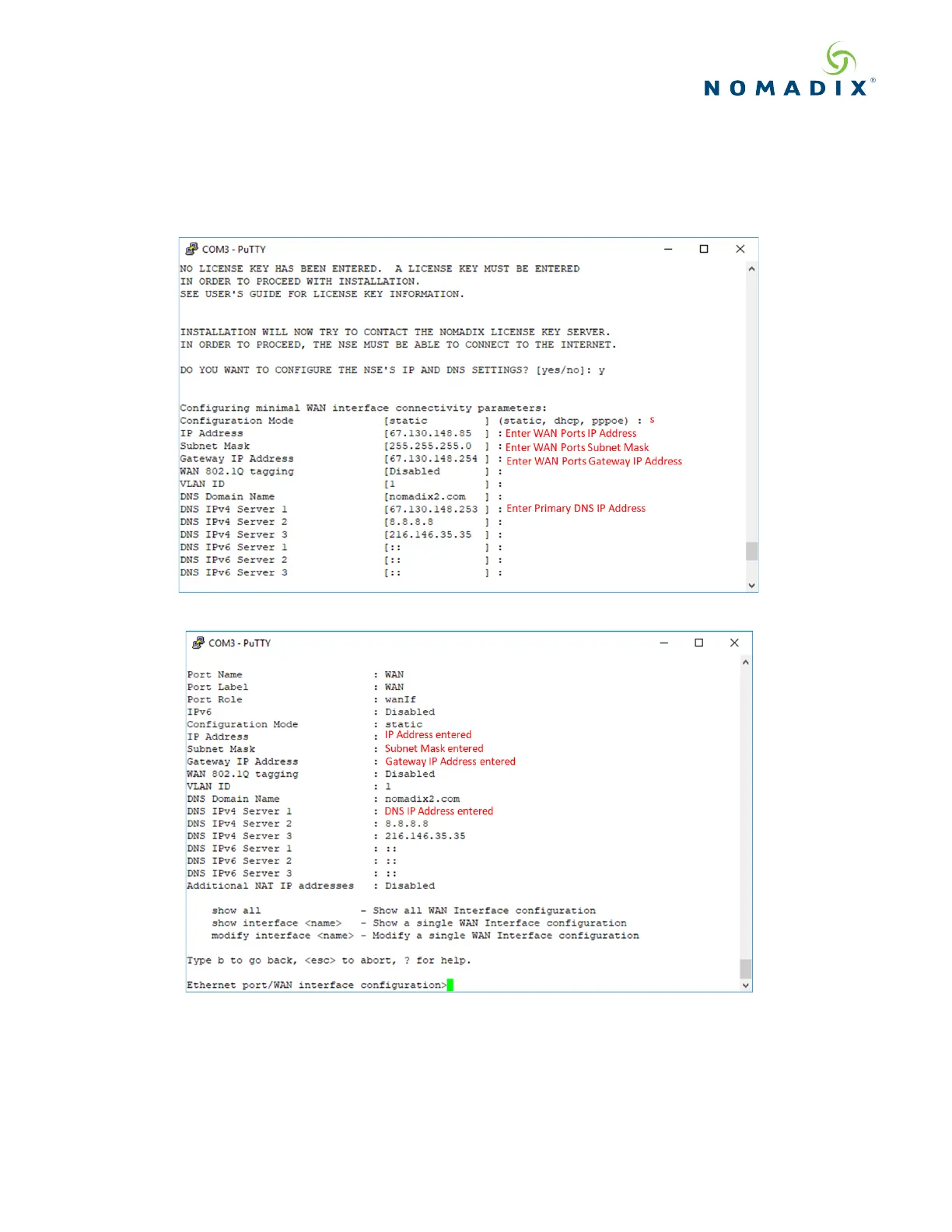

Accept static as the default configuration mode and enter the following mandatory settings shown in Figure 4.
Figure 4: Initial WAN port settings
A WAN port summary page will then be displayed as shown in Figure 5.
Figure 5: WAN port static IP configuration summary page
If everything is correct in the summary, type b[ack] to return to the previous menu and proceed to Step 2 to enter
the location information.
Otherwise, select an option from the Ethernet port configuration menu to display or make changes to the WAN
port settings. When finished with the settings, type b[ack] to return to the previous menu and proceed to Step 2 to
enter the location information.
