7. For the single door models,
check that the two blue wires
terminals J10 and J12 are con-
nected together as shown by
Figure 11.53.
8. With the volt-ohm-meter set
to measure 12 volts DC,
check for 12 volts at the emit-
ter of transistor Q2 as shown
in Figure 11.54.
A. If you do not have 11-12
volts as shown, connect
J10 and J12 together as
shown in Figure 11.53. (2
door models only)
B. If you now have 11-12
volts at the emitter of Q2
there is an open circuit in
the harness to the Humid-
ity/Storage switch and it
must be repaired (See wir-
ing pictorial at the back of
this section.).
9. Set the Mode Selector
switch to DC-ON. The DC
light on the Eyebrow should
be illuminated.
10. If the DC light is not illumi-
nated you must do some more
tests to find the problem.
11. With the Mode Selector at DC-
ON and 12 Volts present at the
emitter of Q2, check for 10
volts DC at the base of transis-
tor Q2 on the Power Supply as
shown by Figure 11.55. If you
do not have 10 volts, the
Power Supply is defective and
must be replaced.
J10, J12 Jumper
Connection

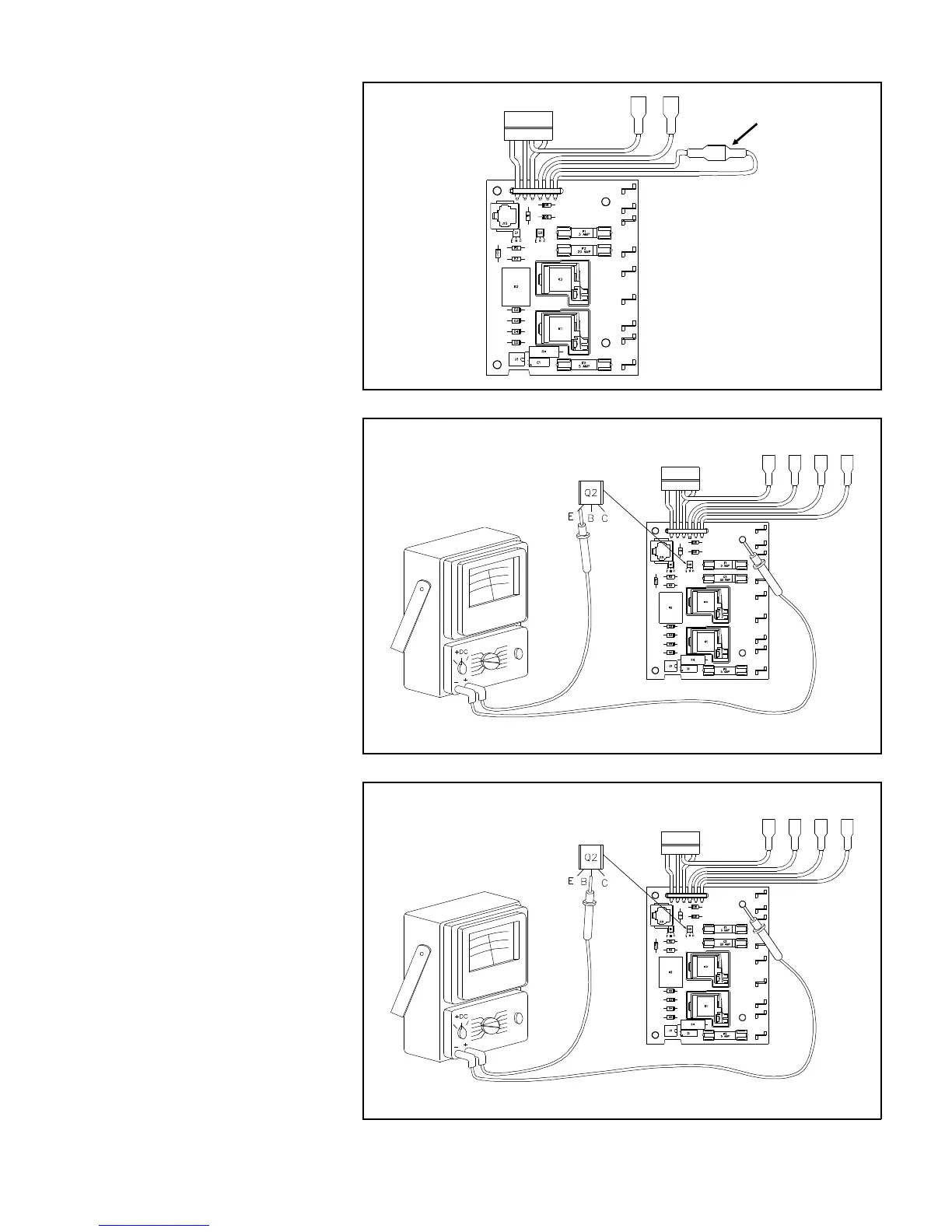

Figure 11.53 Single Door Power Supply
Figure 11.54 12 Volt Check at Q2 Emitter
AC and DC power con-
nected but not shown
AC and DC power con-
nected but not shown
AC and DC power con-
nected but not shown
Figure 11.55 12 Volt Check at Q2 Base
