12. If 10 Volts DC is present in the
preceding step, continue by
removing the Eyebrow assem-
bly from the refrigerator by re-
moving the 3 screws as shown
in Figure 11.56.
13. Remove the Eyebrow board
from the Eyebrow assembly
as shown in Figure 11.57.
Do not disconnect the cable
or thermistor from the Eye-
brow board.
14. Set the volt-ohm-meter to
measure + 12 volts DC, and
check for 10 volts at R22 and
D11 as shown in Figure 11.58.
A. If you do not have 10 volts
the cable is defective.
B. If you have 10 volts and the
DC light is not illuminated
the Eyebrow board is de-
fective.
15. Set the Mode Selector swit-
ch(s) to OFF.

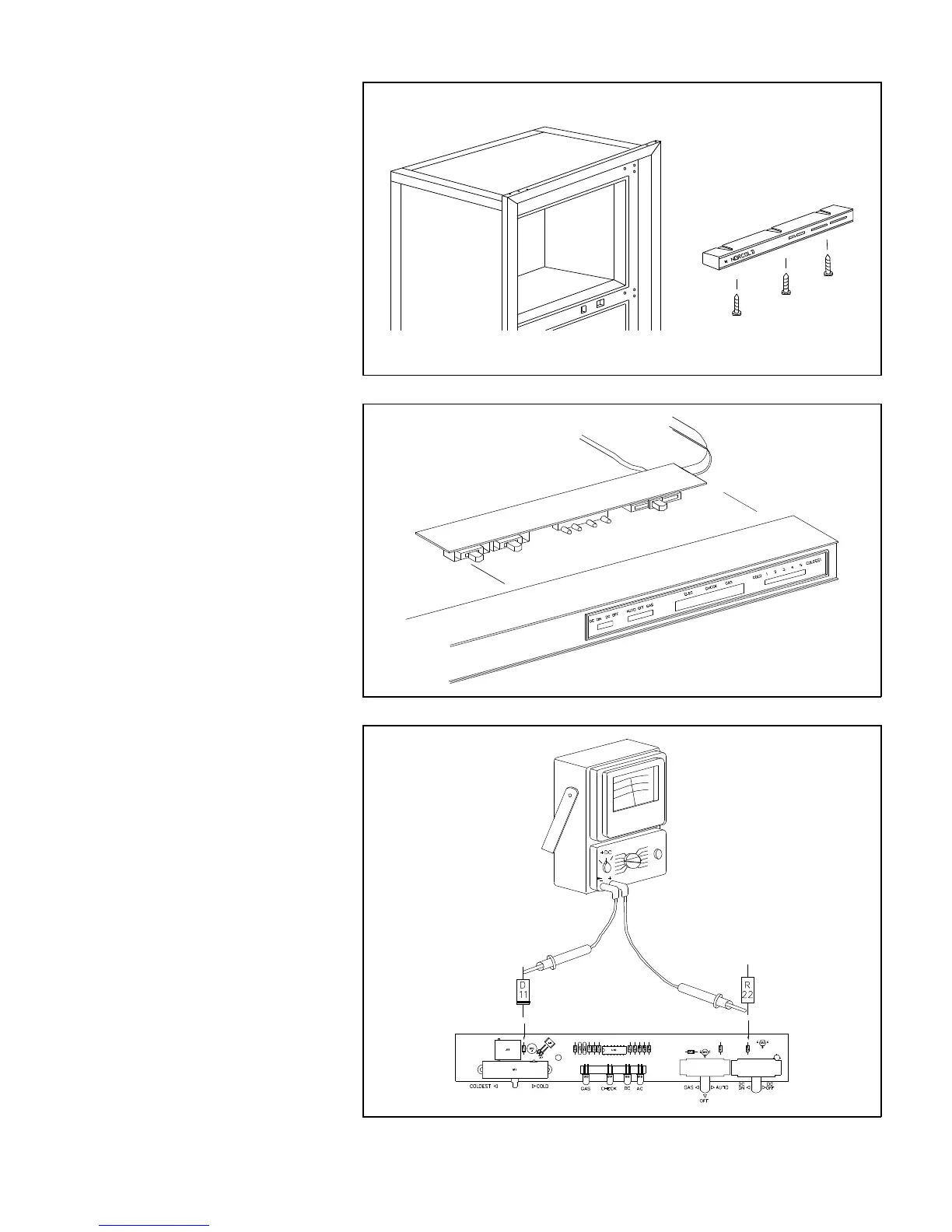

Figure 11.56 Eyebrow Removal
Figure 11.57 Eyebrow Board Removal
Cable and Thermistor connected
but not shown
Figure 11.58 Control Voltage Check
