8

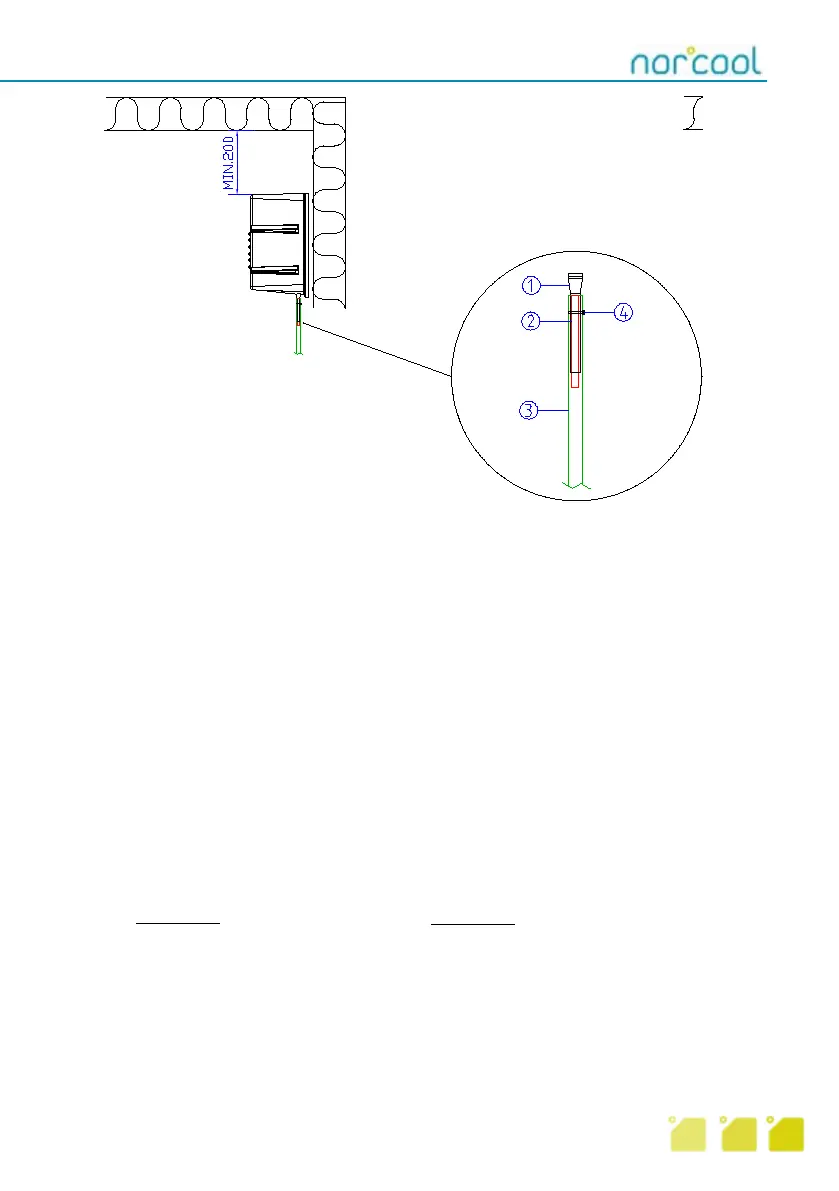

1. Rubber drainpipe
2. Copper tube
3. Plastic hose
4. Strips
Condenser element CU-450 Split
1. Mount shelf (galvanised element) on wall using the 5 screws supplied.
2. Secure foam insulation on rear, nearest the galvanised element.
3. Place condenser element on shelf, secure at top using screw and rubber sleeve.
Drain condensation to a container (tub or the like) or to a floor drain using a plastic hose (remem-
ber a U-bend).
Refrigeration installation
Suction pipe (8mm) and fluid pipe (6mm) connected (braised) to nozzles on condenser and evapora-
tor element.
NOTE: Remember lter. Pipes should be insulated.
Pressure test unit. Evacuate and fill with R-134A coolant.
Evaporation temperature -10 °C
NOTE: An oil lock may be required
Alternative1
Pipes can be installed with
a fall towards the evaporator
element all the way from where
they go down to the machine
element.
Alternative2
Oil lock must be fitted so that
the entire height difference is
a vertical pipe with oil lock up
and down.
NOTE: It is vital to avoid
oil pockets, i.e. a completely
level horizontal stretch.
