Version 3/01 Page 5/25

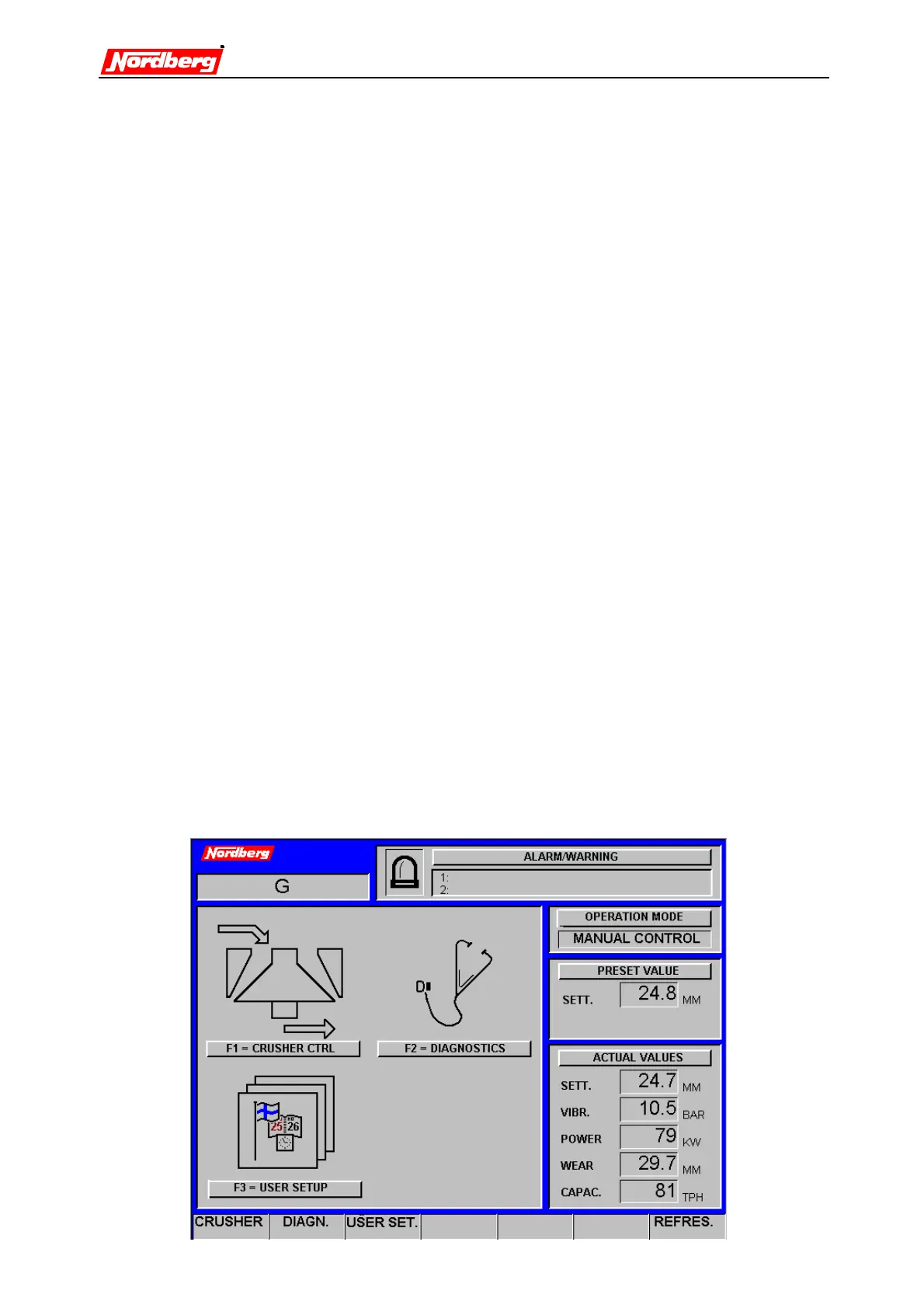

Display screen
The user interface screen is divided into seven windows. The function of the windows is
described below, starting clockwise from the top left corner.
Window 1: Crusher type.
Window 2: Alarms and warnings. The alarm light at left in this window turns red for
alarm and yellow for warning.
Window 3: Operation mode.
Window 4: Preset values.
Window 5: Actual values. At least the values of setting, pressure and power are shown
filtered in the window. The momentary value of capacity is an option.
Window 6: Menu.
Window 7: Main menu. The window specially activated by the user, with different
contents in each screen.
The controlling system starts up when power is switched on. The main menu is always
shown after start-up. The main menu contains the following submenus:
F1: Crusher control. Essential functions for controlling and monitoring the process.
F2: Diagnostics. Monitoring of sensor and actuator condition, diagnostics routines, and
start/stop routines.
F3: System parameters. Device and user parameters.
