Installing AirPatrol
AirPatrol should be mounted on the wall to the right of your heat pump’s
indoor unit (see fig. 1), with its IR transmitter pointing down. This way
the IR beam is reflected from the floor and reaches the heat pump’s
sensor most efficiently.
Other mounting configurations are possible too as long as IR
transmission from the controller to the pump works.
NB! Thick carpets and dark floors can distort the IR beam. Make sure
the IR beam reaches the pump’s sensor by using the controller’s Test
function.

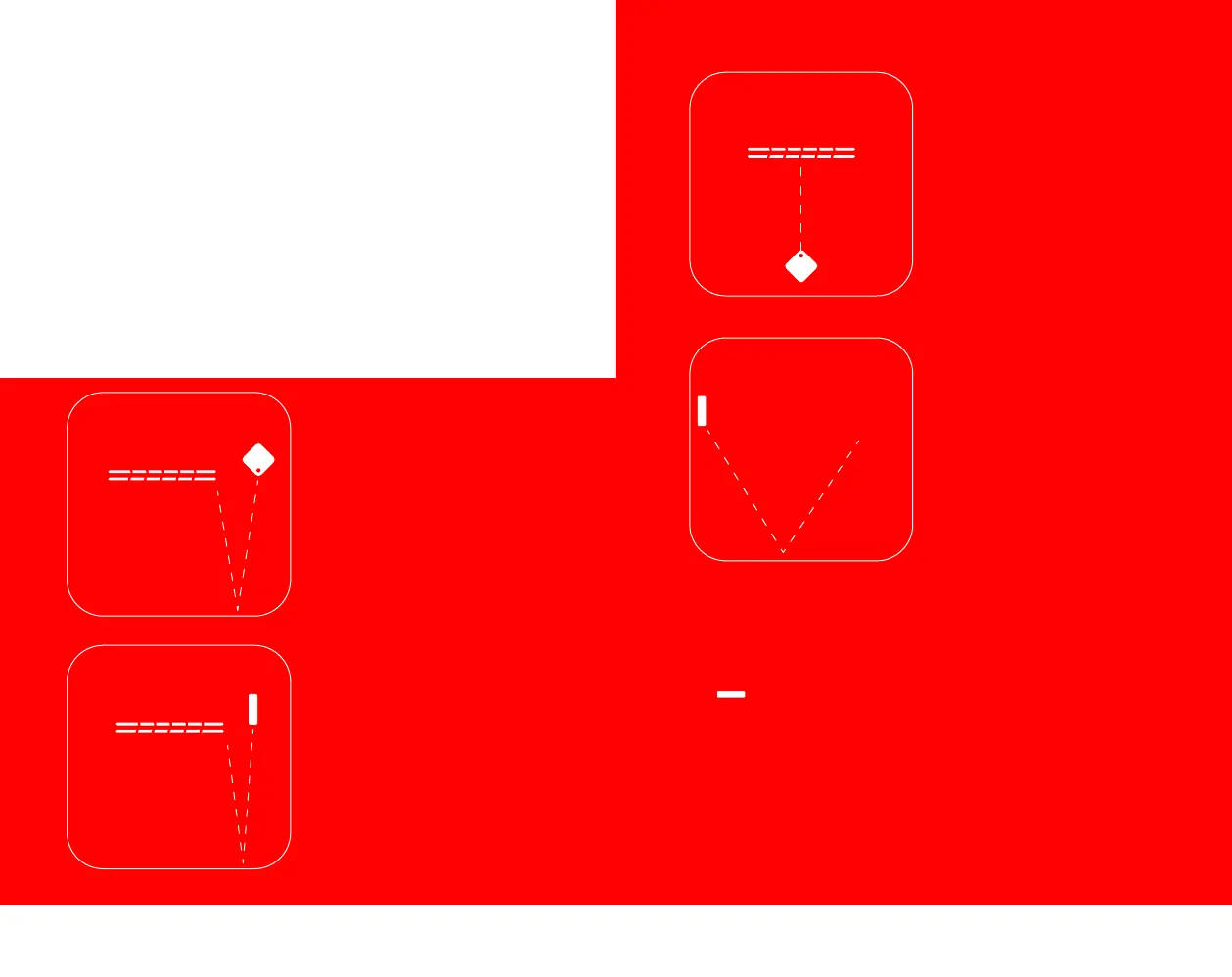

Fig. 1
On the right side of
the indoor unit
Fig. 2
Attached to the right side of
the indoor unit
Fig. 3
Beneath the indoor unit
Fig. 4
On the wall, opposite to
the indoor unit
Fig. 5
On a ledge, opposite to the
indoor unit
